Track dumper

DT08PRO crankshaft, piston Diagram

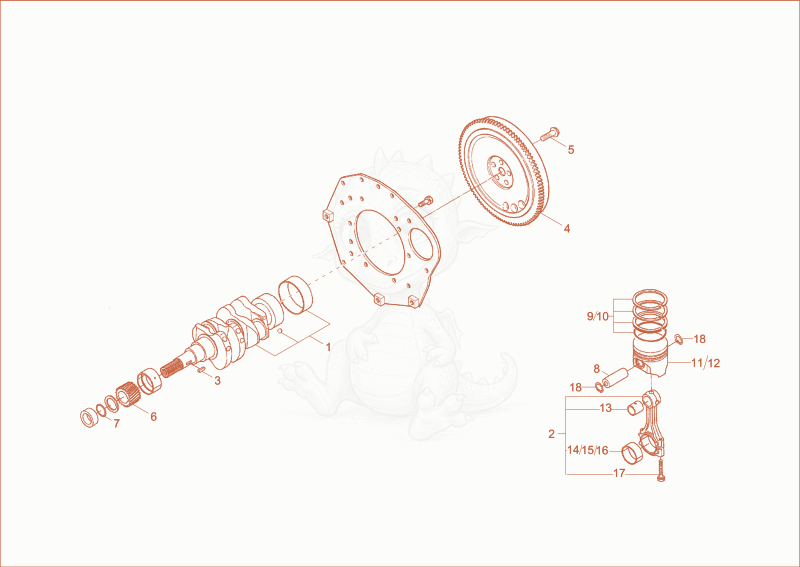

Exploded parts diagram of the crankshaft, piston of a Wacker Neuson DT08PRO, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000324690Not stocked
    crank shaft×1
  • 21000324684Not stocked
    connecting rod×2
  • 31000324698Price
    wedge - 1000324698×1
  • 41000324711Price
    flywheel - 1000324711×1
  • 51000324913Price
    SCREW - 1000324913×5
  • 61000324692Price
    Gear - 1000324692×1
  • 71000324700Not stocked
    o-ring×1
  • 81000324683Price
    Pin - 1000324683×2
  • 91000324681Not stocked
    piston ring set×2
  • 101000324682Not stocked
    piston ring set×2
  • 111000324679Price
    PISTON - 1000324679×2
  • 121000324680Price
    PISTON - 1000324680×2
  • 131000324918Price
    BUSHING - 1000324918×2
  • 141000324686Not stocked
    bearing lodging×2
  • 151000324688Not stocked
    bearing lodging×2
  • 161000324689Not stocked
    bearing lodging×2
  • 171000324685Not stocked
    conn.rod screw×4
  • 181000233607Price
    lock ring - 1000233607×4
