Track dumper

DT08PRO GEAR PUMP 2 (OPTION) Diagram

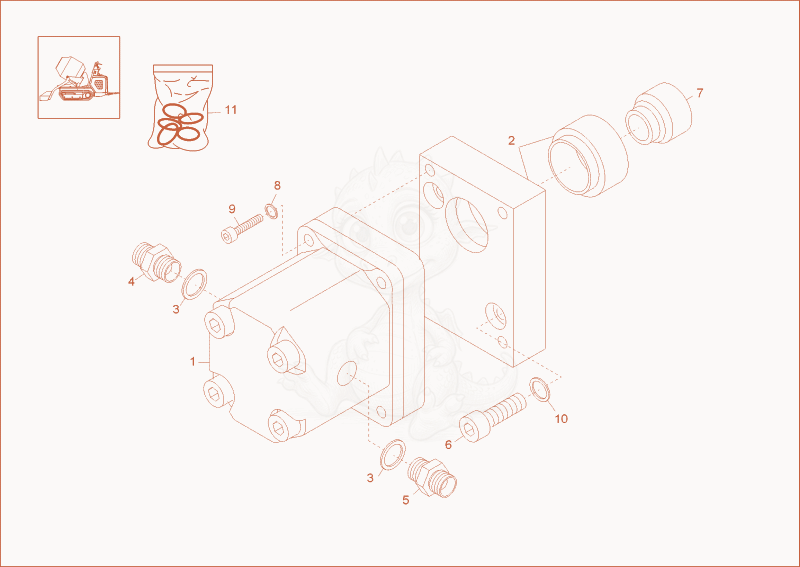

Exploded parts diagram of the GEAR PUMP 2 (OPTION) of a Wacker Neuson DT08PRO, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000284554Price
    Hydraulic Pump 1000284554×1
  • 21000284556Price
    PUMP CARRIER - 1000284556×1
  • 31000129428Price
    copper ring - 1000129428×2
  • 41000270645Price
    DOUBLE NIPPLE - 1000270645×1
  • 51000271299Price
    ADAPTER - 1000271299×1
  • 61000015369Not stocked
    cheese head screw×2
  • 71000285118Price
    COUPLING - 1000285118×1
  • 81000015430Not stocked
    washer×4
  • 91000015369Not stocked
    cheese head screw×4
  • 101000030951Not stocked
    spring washer×2
  • 111000285815Price
    SEAL KIT - 1000285815×1
