Track dumper

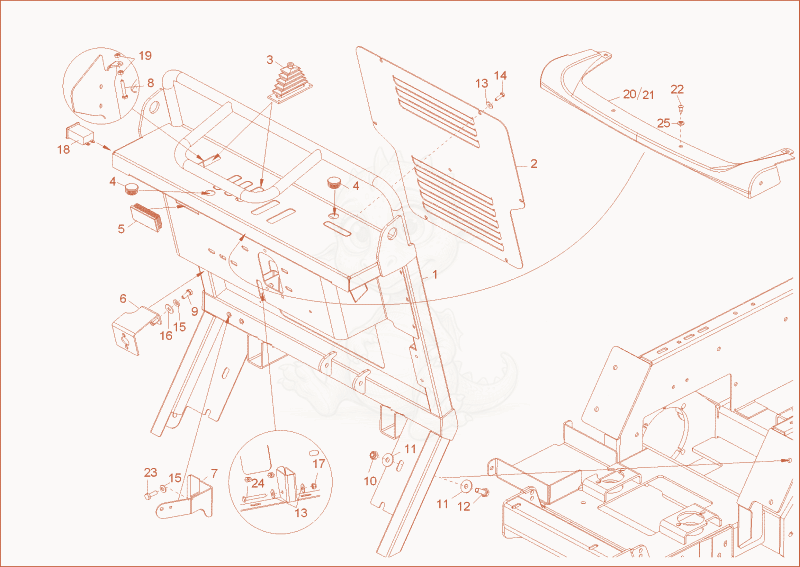

DT08PRO pilot stand Diagram
- Operating Stand 1000279014×1
- Cover 1000276362×1
- bellow - 1000270109×6
- 41000273109Not stockedplug×2
- plug - 1000272104×1
- BRACKET - 1000274699×1
- BRACKET - 1000276169×1
- 81000015340Not stockedhex screw×1
- 91000013008Not stockedhex screw×2
- HEXAGON NUT - 1000269291×4
- Washer 10,5 St A2C - 1000092303×8
- 121000015364Not stockedhex screw×4
- washer - 1000383668×9
- 141000018400Not stockedhex screw×7
- tension disc - 1000271022×4
- WASHER - 1000271815×2
- HEXAGON NUT - 1000269276×1
- hour meter - 1000273201×1
- 191000015405Not stockedhexagon nut×2
- BRACKET - 1000279326×1
- BRACKET - 1000284097×1
- screw - 1000279040×6
- 231000015343Not stockedhex screw×2
- hex screw - 1000085310×1
- WASHER - 1000279036×6
