WN Excavator 9503-2

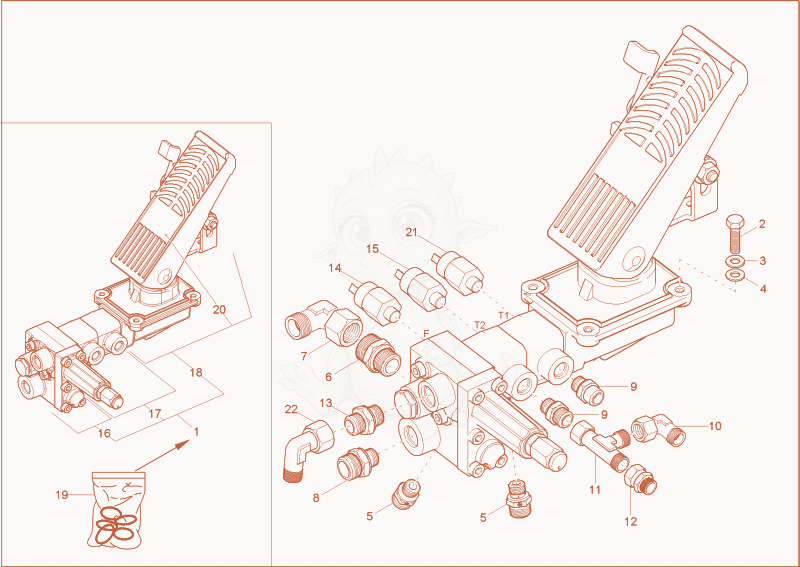

9503 BRAKE VALVE Diagram
- 11000078963Not stockedbrake valve×1
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×5
- 31000015437Not stockedlock washer×5
- 41000015431Not stockedwasher×5
- GEO12LM14X1,5OMDA3C - 1000083062×2
- GEO15LM22X1,5OMDA3C - 1000128409×1
- 71000015512Not stockedscrew joint×1
- GE15LM18X1,5OROMDA3C - 1000155383×1
- GEO10LM14X1,5OMDA3C - 1000163493×2
- 101000015510Not stockedscrew joint×1
- EL10LOMDA3C - 1000085089×1
- RED10/08LOMDA3C - 1000085094×1
- GEO12LM18X1,5OMDA3C - 1000117363×1
- PRESSURE SWITCH - 1000167490×1
- PRESSURE SWITCH - 1000164135×1
- ACCUMULATOR LOADING VALVE - 1000171416×1
- brake modul - 1000171418×1
- Brakepedal 1000171417×1
- seal kit - 1000171415×1
- 201000171419Not stockedrubber cover plate×1
- PRESSURE SWITCH - 1000167512×1
- 221000000573Not stockedscrew joint×1
