WN Excavator 9503-2

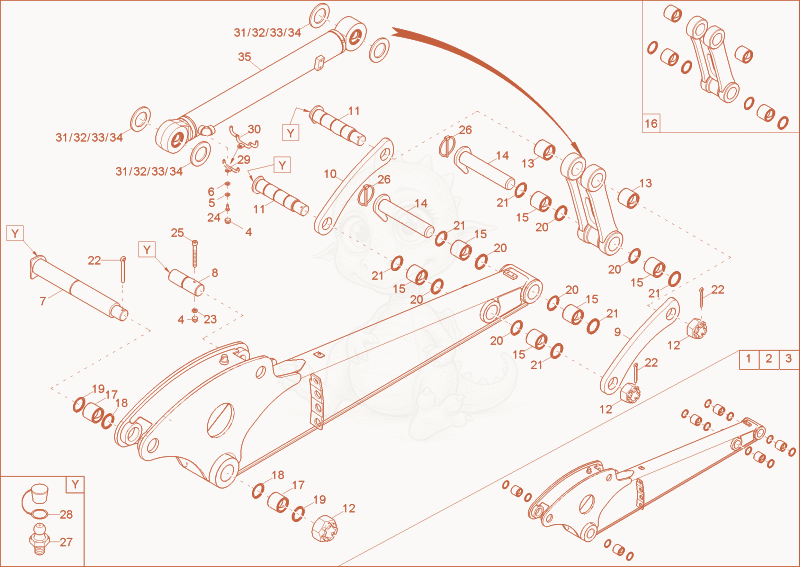

9503 dipperstick Diagram
- 11000321934Not stockedPRE-ASSEMBLED DIPPER ARM×1
- 21000321935Not stockedPRE-ASSEMBLED DIPPER ARM×1
- 31000321936Not stockedPRE-ASSEMBLED DIPPER ARM×1
- 41000067799Not stockedcover cap×2
- 51000015438Not stockedlock washer×1
- washer 10,5 A2C DIN125 - 1000015432×1
- Pin 1000175014×1
- Pin 1000115092×1
- Pivotplate 1000115094×1
- Pivotplate 1000115093×1
- Pin 1000115084×2
- 121000015419Not stockedcrown nut×3
- steel bushing - 1000083201×2
- Pin 1000115091×2
- 151000015603Not stockedsteel bushing×6
- Pre Assembledconnectinglink 1000132366×1
- steel bushing - 1000083203×2
- lock ring - 1000082759×2
- pin gasket - 1000083593×2
- lock ring - 1000095014×6
- 211000015701Not stockedpin gasket×6
- cotterpin - 1000085662×3
- nut M10-8 A2C-DIN985 - 1000015408×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
- CHEESE HEAD SCREW - 1000082430×1
- 261000015457Not stockedcotter pin×2
- 271000015476Not stockedgrease nipple×5
- 281000015480Not stockedcap grease nipple×5
- bracket hose - 1000113934×1
- bracket hose - 1000235848×1
- shim - 1000115023×1
- shim - 1000115021×1
- shim - 1000115020×1
- shim - 1000114999×1
- 351000379311Not stockedbucket cylinder×1
