WN Excavator 9503-2

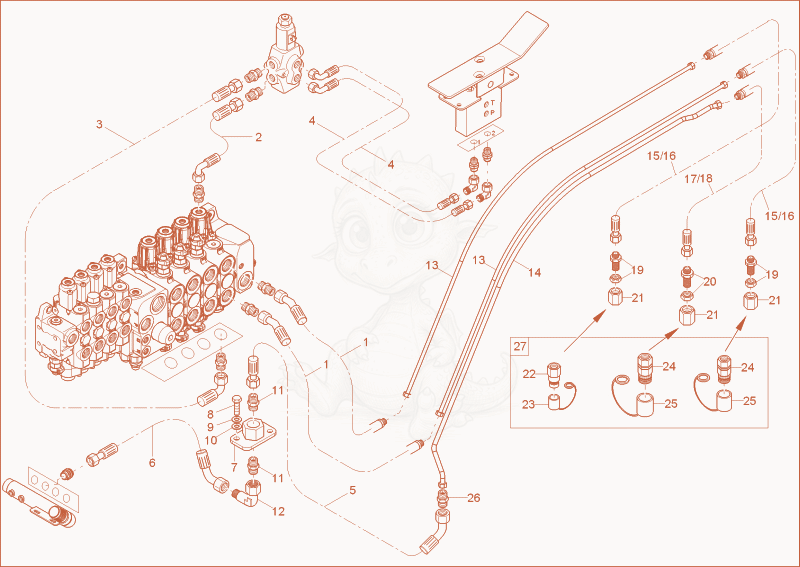

9503 AUXILIARY HYDRAULICS OPERATION Diagram
- 11000356008Not stockedHose×2
- 21000076667Not stockedHose×1
- 31000076293Not stockedHose×1
- SLHYDR 1SCP6,0PN8 0 PN8 90 L800,0 0 - 1000112776×2
- Slhydr1Sc25Pn2845Pn280L1300S0 1000171967×1
- 61000167875Not stockedHose×1
- bushing tube - 1000126231×1
- 81000085418Not stockedhex screw×2
- lock washer - 1000082609×2
- 101000049219Not stockedwasher×2
- 111000015496Not stockedscrew joint×2
- EW28LOMDA3C - 1000085091×1
- Pipeline 1000159422×2
- Pipeline 1000159420×1
- 151000356063Not stockedHose×2
- 161000168821Not stockedHose×2
- 171000356064Not stockedHose×1
- 181000168822Not stockedHose×2
- 191000020799Not stockedlock screw connection×2
- SCHOTTVERSCHRAUBUNG - 1000129678×1
- locking cap - 1000082960×3
- 221000109374Not stockedquick lock coupling×1
- dust cap - 1000109418×1
- 241000109375Not stockedquick lock coupling×2
- dust cap - 1000109419×2
- G28LOMDA3CX - 1000085083×1
- 271000158389Not stockedretrofit kit coupling×1
