9503 DIPPER ARM CYLINDER (OPTION) Diagram

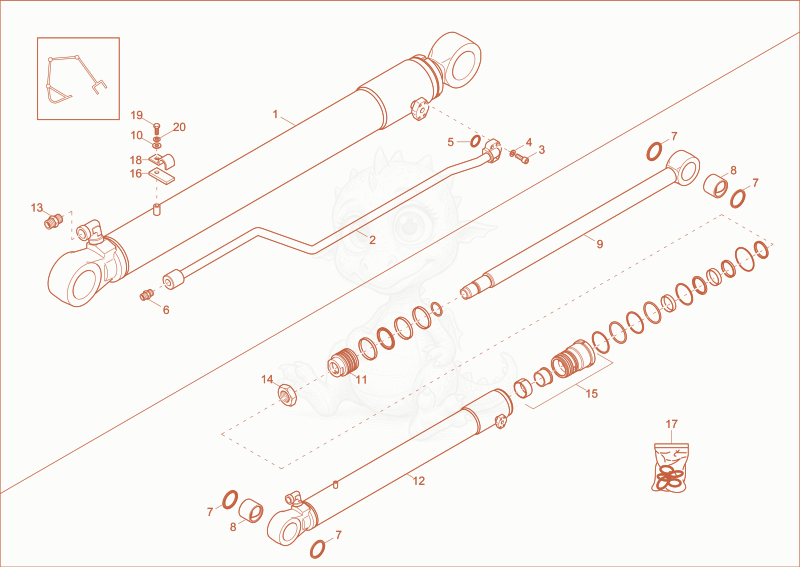

Exploded parts diagram of the DIPPER ARM CYLINDER (OPTION) of a Wacker Neuson 9503, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000365262Not stocked
    dipper arm cylinder×1
  • 21000142443Not stocked
    cylinder pipes assy.×1
  • 31000099330Price
    cheese head screw - 1000099330×4
  • 41000082624Price
    spring washer - 1000082624×4
  • 51000015678Price
    O-RING - 1000015678×1
  • 61000136481Price
    GE25SR1/2EDOMDA3C - 1000136481×1
  • 71000286250Price
    pin gasket - 1000286250×4
  • 81000286261Price
    steel bushing - 1000286261×2
  • 91000323485Not stocked
    piston rod×1
  • 101000015432Price
    washer 10,5 A2C DIN125 - 1000015432×1
  • 111000286263Price
    Piston 1000286263×1
  • 121000286248Price
    Cylinder 1000286248×1
  • 131000085118Price
    GE25SR3/4" EDOMDA3C - 1000085118×1
  • 141000286245Price
    set nut - 1000286245×1
  • 151000372916Not stocked
    guide bushing×1
  • 161000144813Price
    plate - 1000144813×1
  • 171000372950Not stocked
    cylinder seal kit×1
  • 181000142445Price
    pipe clamp - 1000142445×1
  • 191000085412Price
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×1
  • 201000015438Not stocked
    lock washer×1
