Excavator 28Z3

28Z3 service kit (1000h) Diagram

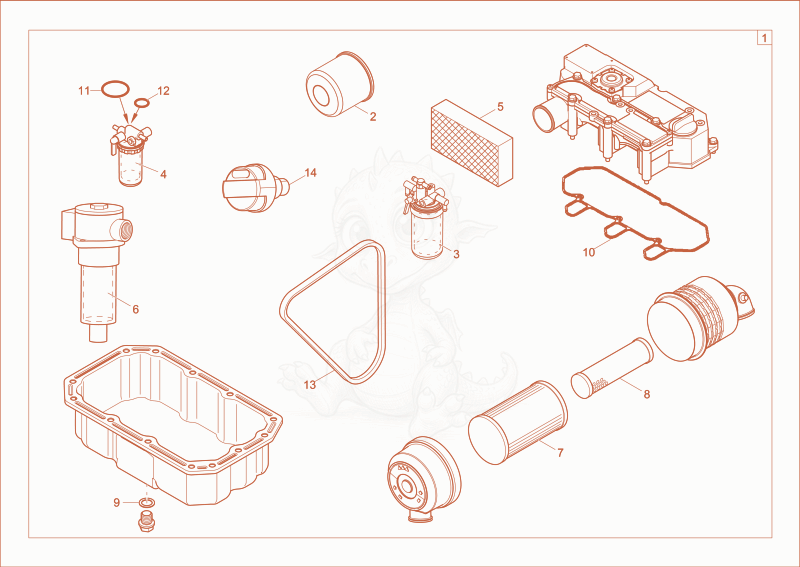

Exploded parts diagram of the service kit (1000h) of a Wacker Neuson 28Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000252008Price
    Servicekit28Z31000H 1000252008×1
  • 21000003052Price
    engine oilfilter - 1000003052×1
  • 31000147873Price
    FUEL FILTER INSERT - 1000147873×1
  • 41000106892Price
    water seperator element - 1000106892×1
  • 51000157488Price
    HEATER FILTER - 1000157488×1
  • 61000318994Not stocked
    reflux filter insert×1
  • 71000141558Price
    airfilter element - 1000141558×1
  • 81000141559Price
    airfilter element - 1000141559×1
  • 91000071058Not stocked
    seal ring×1
  • 101000148554Price
    VALVE COVER SEAL - 1000148554×1
  • 111000069998Not stocked
    gasket filter housing×1
  • 121000064543Price
    O-RING - 1000064543×1
  • 131000148347Price
    V-belt - 1000148347×1
  • 141000261957Price
    venting filter (0,2bar) - 1000261957×1
