Excavator 28Z3

28Z3 rear plate Diagram

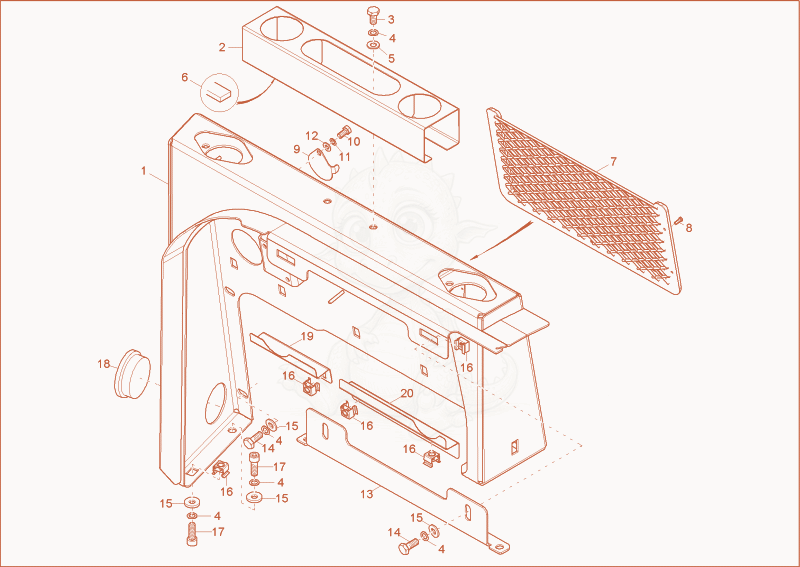

Exploded parts diagram of the rear plate of a Wacker Neuson 28Z3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000164223Not stocked
    rear plate×1
  • 21000165227Price
    BOARD - 1000165227×1
  • 31000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 41000015438Not stocked
    lock washer×6
  • 51000092303Price
    Washer 10,5 St A2C - 1000092303×2
  • 61000098196Price
    seal strap foam 10x15 - 1000098196×1
  • 71000168897Price
    net - 1000168897×1
  • 81000085560Not stocked
    ovalhead screw×5
  • 91000160167Not stocked
    cover×1
  • 101000019136Not stocked
    hex screw×1
  • 111000015437Not stocked
    lock washer×1
  • 121000015431Not stocked
    washer×1
  • 131000172813Not stocked
    angle×1
  • 141000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 151000094974Price
    washer M10-DIN134 - 1000094974×6
  • 161000094956Price
    cage nut M10 3,3-4,7 - 1000094956×15
  • 171000085502Price
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×2
  • 181000072490Price
    PLUG - 1000072490×1
  • 191000165226Not stocked
    bracket×1
  • 201000165228Price
    BRACKET - 1000165228×1
