Excavator 28Z3

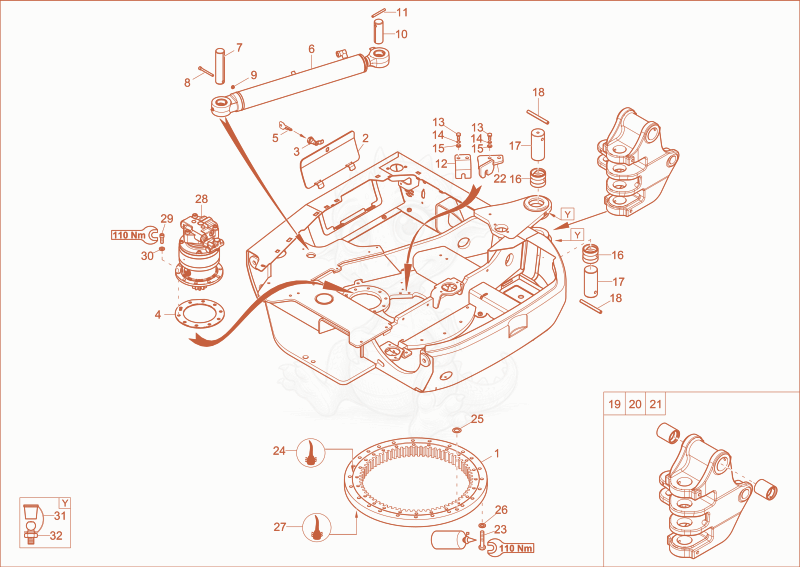

28Z3 chassis Diagram
- Slewingring2503Ez283027 1000257833×1
- Cover 1000176632×1
- 31000069463Not stockedcylinder lock×1
- shim - 1000298295×1
- EZ17 Key without cap - 1000184819×1
- Boomoffsetcylinder 1000186343×1
- Pin 1000294696×1
- 6-Point screw M8x80-8.8 A2C - 1000085319×1
- DIN985-M8-8-A2C - 1000015416×1
- PIN - 1000294703×1
- cotter pin 8x80 - 1000082715×1
- 121000068709Not stockedtorque support×1
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
- 141000015438Not stockedlock washer×2
- washer 10,5 A2C DIN125 - 1000015432×2
- 161000139603Not stockedsteel bushing×2
- Pin 1000294695×2
- cotter pin - 1000110018×2
- 191000315944Not stockedswivel console premounted×1
- 201000315946Not stockedswivel console premounted×1
- 211000315945Not stockedswivel console premounted×1
- torque support - 1000233801×1
- hex screw - 1000085370×15
- gasket slewing gear - 1000097244×1.8
- O-RING - 1000095054×1
- washer 13 A2C DIN6916 - 1000082611×15
- gasket slewing gear - 1000097244×1.8
- Swiveldrive 1000267149×1
- 291000015356Not stockedcheese head screw×10
- 301000015450Not stockednorthlock disc×10
- 311000015480Not stockedcap grease nipple×2
- 321000015475Not stockedgrease nipple×2
