Excavator 1404

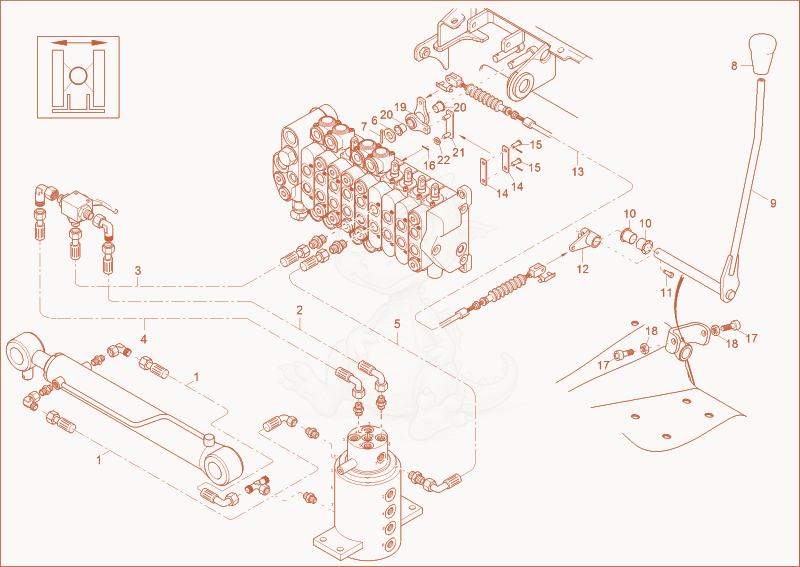

1404 TELESCOPIC CYLINDER OPERATION Diagram
- SLHYDR 2SC 6,0PN8 90 PN8 0 L600,0 0 - 1000076499×2
- SLHYDR 2SC 6,0PN8 90 PN8 0 L850,0 0 - 1000157877×1
- SLHYDR 2SC 6,0PN8 0 PN8 0 L650,0 0 - 1000154267×1
- 41000013131Not stockedHose×1
- SLHYDR 2SC 6,0PN8 90 PN8 0 L850,0 0 - 1000076570×1
- 61000049219Not stockedwasher×1
- cotter pin 3,2x20 - 1000095365×1
- handle - 1000098167×1
- 91000155421Not stockeddozer blade lever×1
- 101000066462Not stockedslide bearing×2
- allen screw M5x20-8.8 A2C DIN912 - 1000085452×1
- 121000153714Not stockedlever×1
- Bowden cable - 1000395529×1
- plate - 1000153422×2
- 151000153421Not stockedpin×2
- cotter pin - 1000151228×2
- 171000015376Not stockedcheese head screw×2
- 181000015407Not stockedhexagon nut×2
- LEVER - 1000153423×1
- 201000069438Not stockedslide bearing×2
- plate - 1000325019×1
- 221000015430Not stockedwasher×2
