Excavator 1404

1404 boom offset cylinder Diagram

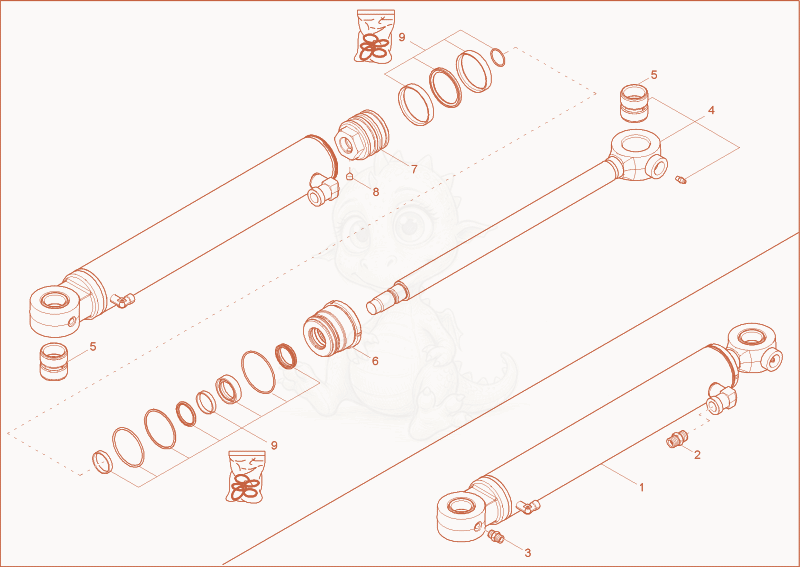

Exploded parts diagram of the boom offset cylinder of a Wacker Neuson 1404, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000264760Not stocked
    boom offset cylinder×1
  • 21000015489Not stocked
    screw joint×1
  • 31000015532Not stocked
    screw joint×1
  • 41000160906Price
    Pistonrod 1000160906×1
  • 51000165322Price
    STEEL BUSHING - 1000165322×2
  • 61000160907Not stocked
    guide bushing×1
  • 71000160908Price
    PISTON - 1000160908×1
  • 81000128055Price
    thread pin - 1000128055×1
  • 91000160909Price
    CYLINDER SEAL KIT - 1000160909×1
