Excavator 1404

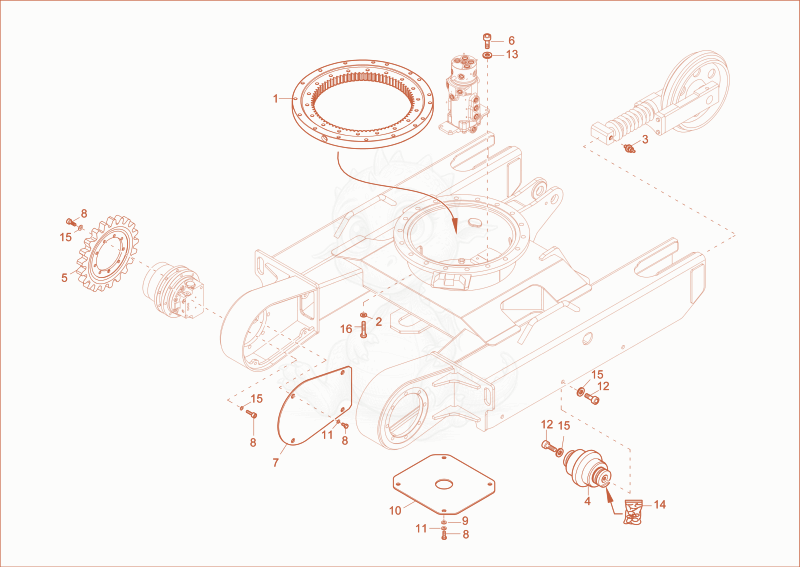

1404 undercarriage Diagram
- 11000258025Not stockedslewing ring×1
- 21000426231Not stockedlock washer×18
- non return valve - 1000232922×2
- Roller 1000258134×6
- Drivewheel 1000258023×2
- 61000013014Not stockedcheese head screw×4
- Coverundercarriagedriveunit 1000099483×2
- allen screw M10x30 Geomet 500A DIN912 - 1000085502×46
- washer 10,5 A2C DIN125 - 1000015432×4
- 101000160670Not stockedcover undercarriage×1
- 111000015438Not stockedlock washer×12
- 121000015389Not stockedcheese head screw×12
- Nord-Lock disc NL8 - 1000094995×4
- 141000068854Not stockedseal kit×6
- 151000015449Not stockednorthlock disc×46
- 161000015381Not stockedhex screw×18
