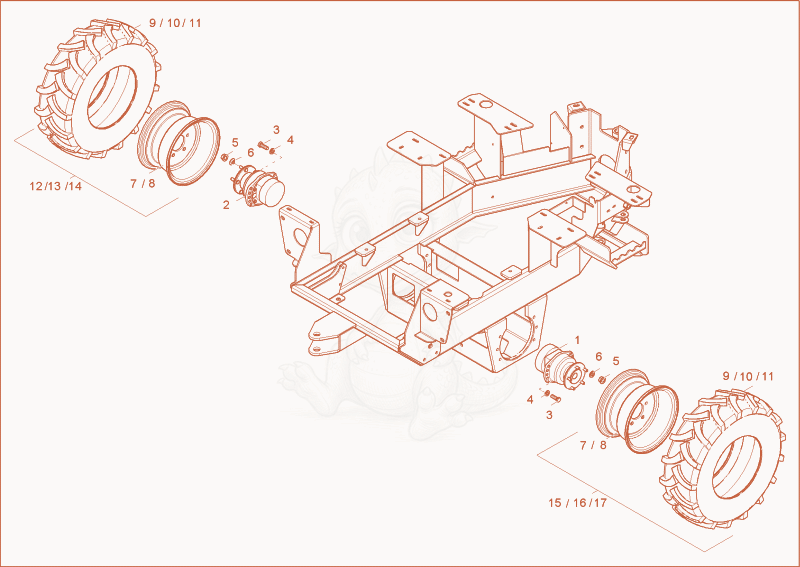

1001 rear wheels Diagram

Exploded parts diagram of the rear wheels of a Wacker Neuson 1001, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000065031Not stocked
hydraulic motor×1
21000065032Not stocked
hydraulic motor×1
31000085404Price
hex screw - 1000085404×12
41000015450Not stocked
northlock disc×12
51000003247Not stocked
wheel nut×10
61000015560Not stocked
spring washer×10
71000064979Not stocked
rim×2
81000079003Price
Rim 1000079003×2
91000064977Not stocked
tyre×2
101000159600Price
tyre - 1000159600×2
111000001641Price
TYRE - 1000001641×2
121000398906Price
WHEEL - 1000398906×1
131000159598Price
WHEEL - 1000159598×1
141000398904Price
WHEEL - 1000398904×1
151000398907Price
WHEEL - 1000398907×1
161000159599Not stocked
wheel×1
171000398905Price
WHEEL - 1000398905×1
