1001 front wheels Diagram

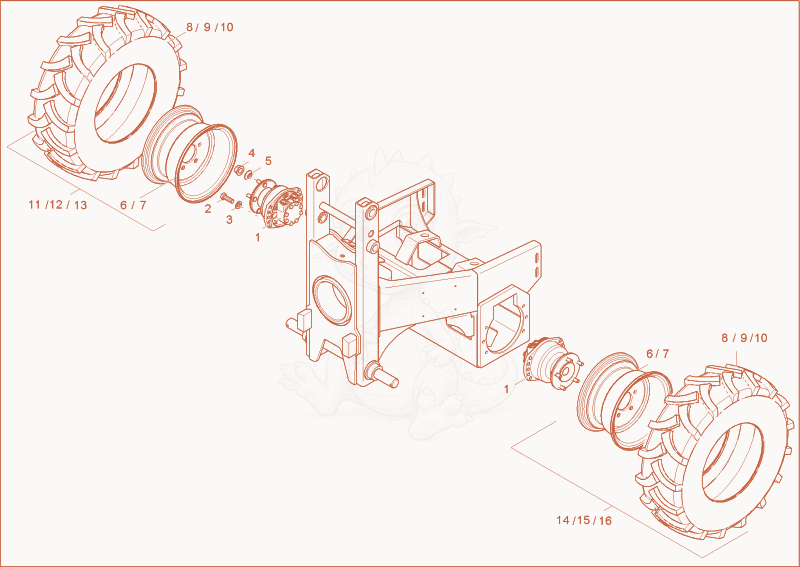

Exploded parts diagram of the front wheels of a Wacker Neuson 1001, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000065033Not stocked
hydraulic motor×2
21000085404Price
hex screw - 1000085404×12
31000015450Not stocked
northlock disc×12
41000003247Not stocked
wheel nut×10
51000015560Not stocked
spring washer×10
61000064979Not stocked
rim×2
71000079003Price
Rim 1000079003×2
81000064977Not stocked
tyre×2
91000159600Price
tyre - 1000159600×2
101000001641Price
TYRE - 1000001641×2
111000398906Price
WHEEL - 1000398906×1
121000159598Price
WHEEL - 1000159598×1
131000398904Price
WHEEL - 1000398904×1
141000398907Price
WHEEL - 1000398907×1
151000159599Not stocked
wheel×1
161000398905Price
WHEEL - 1000398905×1
