1001 tilt ram Diagram

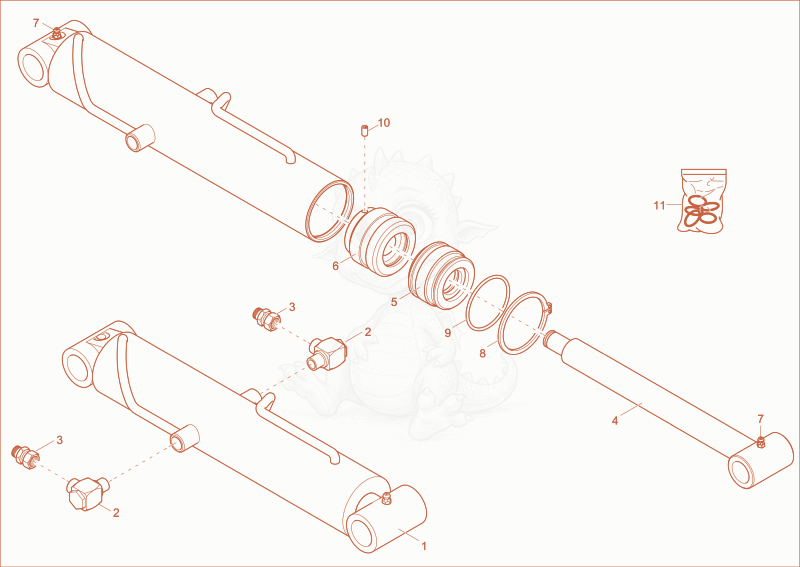

Exploded parts diagram of the tilt ram of a Wacker Neuson 1001, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000372009Not stocked
tilt ram×1
21000471589Not stocked
screw joint×2
31000085094Price
RED10/08LOMDA3C - 1000085094×2
41000079039Not stocked
piston rod×1
51000378922Not stocked
guide bushing×1
61000065099Not stocked
piston×1
71000015475Not stocked
grease nipple×2
81000085636Not stocked
lock ring×1
91000065103Not stocked
spring washer×1
101000065102Not stocked
screw×1
111000378896Not stocked
seal kit×1
