1001 brake valve Diagram

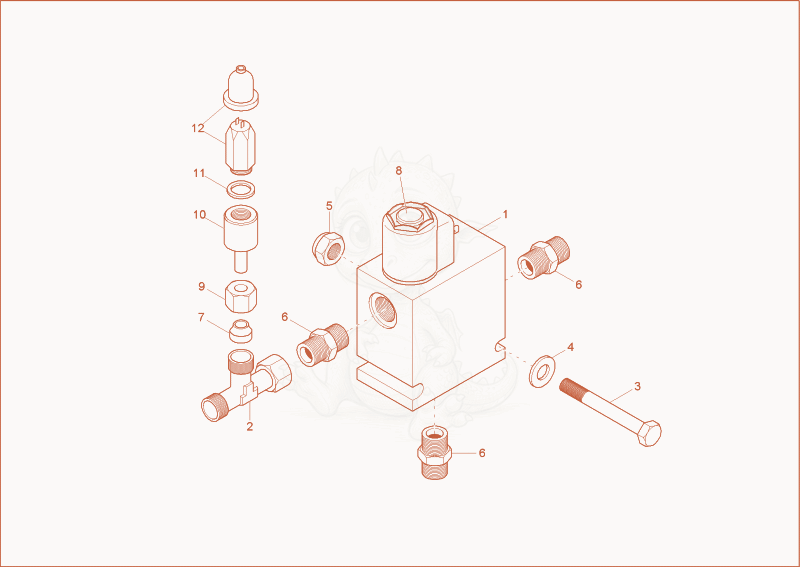

Exploded parts diagram of the brake valve of a Wacker Neuson 1001, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000072285Price
VALVE - 1000072285×1
21000015515Not stocked
screw joint×1
31000085310Price
hex screw - 1000085310×2
41000094966Price
washer M6,4-DIN134 - 1000094966×2
51000085588Price
self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
61000015488Not stocked
screw joint×3
71000015483Price
PSR08LX - 1000015483×1
81000111257Price
SOLENOID - 1000111257×1
91000015481Not stocked
union nut×1
101000138619Price
ADAPTER BACK FLOW - 1000138619×1
111000085676Price
seal ring - 1000085676×1
121000072271Not stocked
pressure switch×1
