WL38

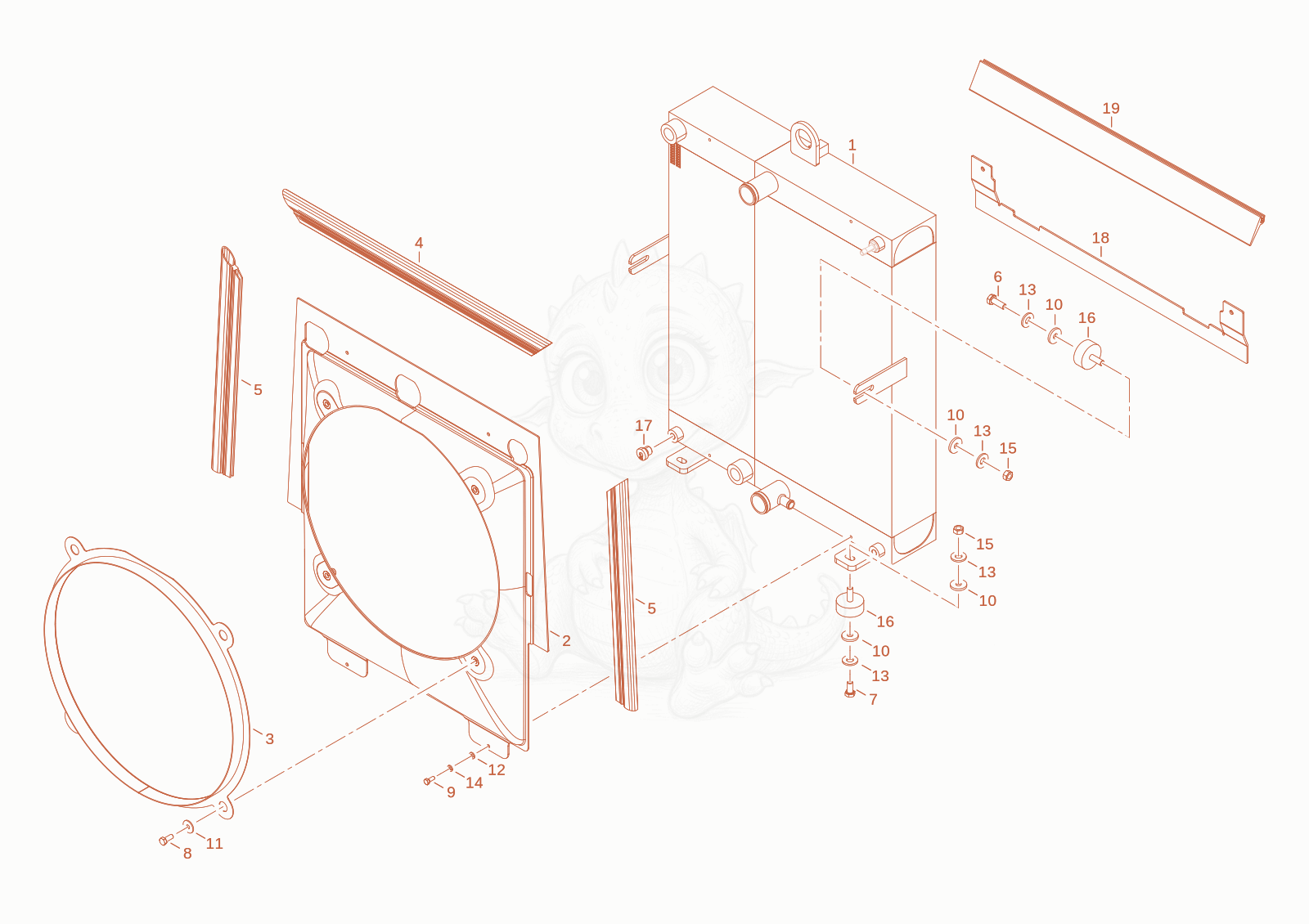

WL38 cooler Diagram
- combicooler - 1000344092×1
- Ventilatorcap 1000292575×1
- 31000357287Not stockedair guide plate×1
- Edge protection - 1000289772×0.82
- Edge protection - 1000289772×0.57
- 61000015364Not stockedhex screw×2
- SCREW - 1000223198×2
- 81000013008Not stockedhex screw×4
- HEX SCREW - 1000085382×4
- Washer - 1000222577×8
- u-washer - 1000222996×4
- 121000015430Not stockedu-washer×4
- grooved washer - 1000082652×8
- 141000015444Not stockedspring washer×4
- 151000015407Not stockedhexagon nut×4
- Silent block - 1000228560×4
- LOCK SCREW - 1000223292×1
- 181000353537Not stockedseal plate×1
- 191000353535Not stockededge protection×1
