WL38

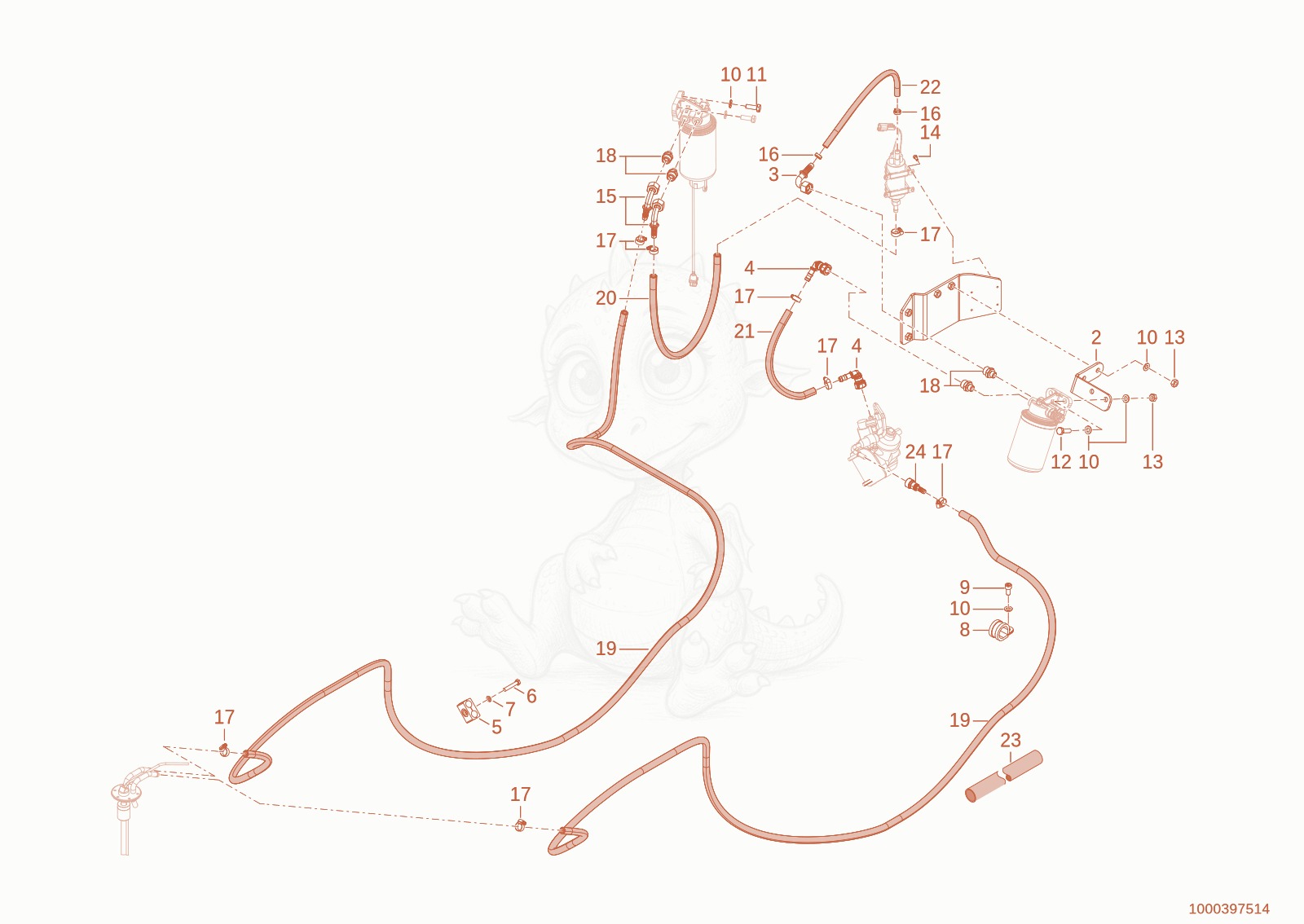

WL38 fuel system Diagram
- Bracketfuelfilter 1000293472×1
- 21000355863Not stockedbracket fuelfilter×1
- 31000312992Not stockedhose fitting×1
- plug - 1000298111×2
- CLAMPING JAWS - 1000222625×1
- 61000015370Not stockedhex screw×1
- 71000030951Not stockedspring washer×1
- 81000062589Not stockedpipe clamp×1
- allen screw M10x20-8.8 A2C-DIN912 - 1000015354×1
- washer 10,5 A2C DIN125 - 1000015432×9
- hex screw - 1000085414×2
- 121000015346Not stockedhex screw×2
- 131000015407Not stockedhexagon nut×4
- allen screw M 5x12-8.8 A2C DIN912 - 1000085494×4
- Hose fitting - 1000132909×2
- clamp - 1000222603×2
- HOSE CLAMP - 1000223511×8
- GE15LM16X1,5EDOMDA3C - 1000085058×4
- fuel line 11,5x3,5 - 1000454999×3.5
- fuel line 11,5x3,5 - 1000454999×0.61
- fuel line 11,5x3,5 - 1000454999×0.34
- 221000523869Not stockedfuel line×0.3
- PROTECTING HOSE - 1000221996×2.8
- 241000343634Not stockedquick lock coupling×1
