WL38

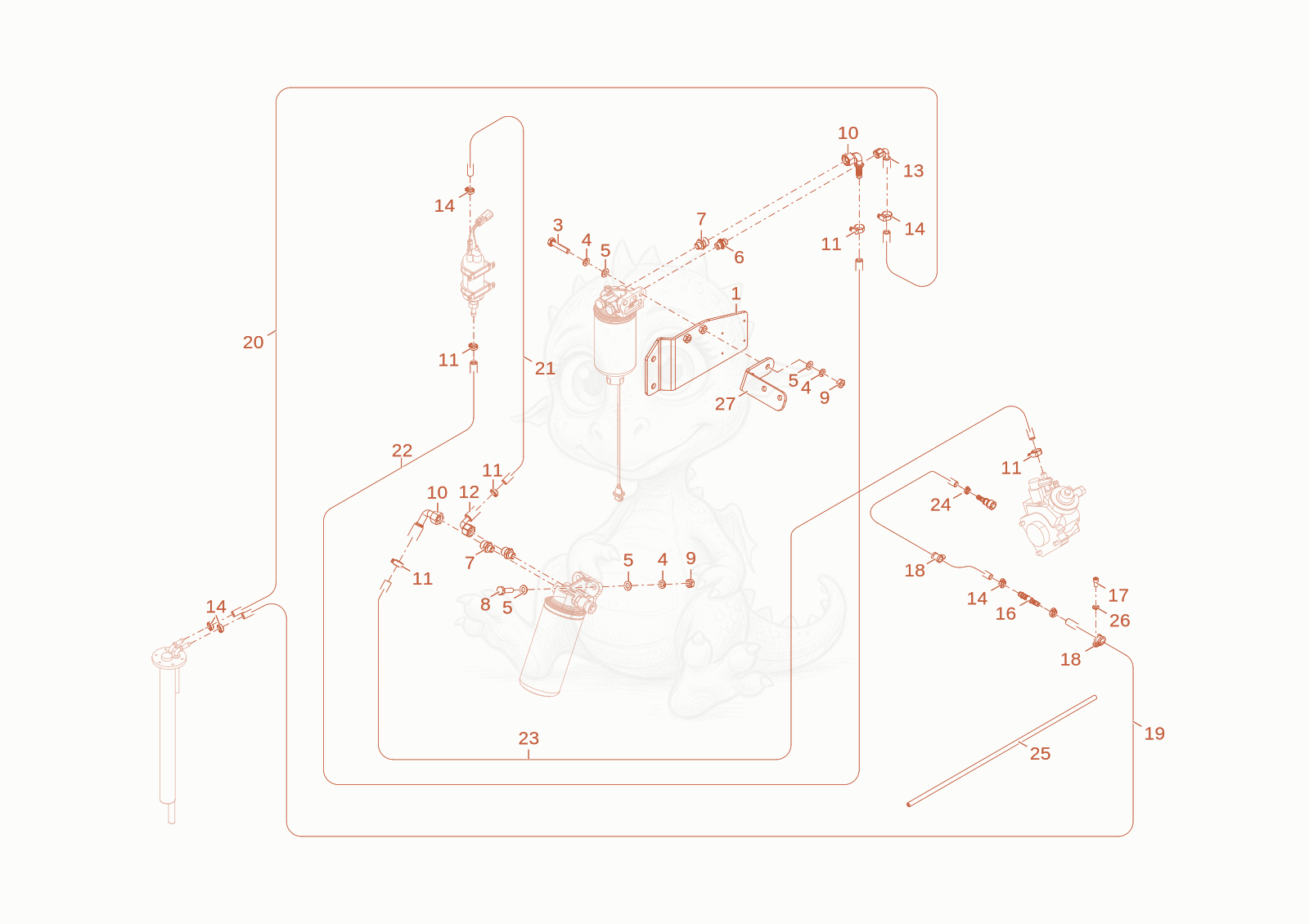

WL38 fuel system Diagram
- Bracketfuelfilter 1000293472×1
- Clamp - 1000223497×1
- hex screw - 1000085414×2
- 41000022016Not stockedspring washer×6
- washer 10,5 A2C DIN125 - 1000015432×8
- GE10LM16X1,5EDOMDA3C - 1000083057×1
- GE15LM16X1,5EDOMDA3C - 1000085058×3
- 81000015346Not stockedhex screw×2
- 91000015407Not stockedhexagon nut×4
- Hose fitting - 1000132909×1
- HOSE CLAMP - 1000223511×4
- 121000312992Not stockedhose fitting×1
- KH-DN8 DKOL 10 90° (M16 X 1,5) - 1000114240×1
- clamp - 1000222603×5
- allen screw M 5x12-8.8 A2C DIN912 - 1000085494×4
- hose nipple - 1000302908×1
- allen screw M10x20-8.8 A2C-DIN912 - 1000015354×2
- PIPE CLAMP - 1000223491×1
- Fuel hose 8,0x3,0mm - 1000527471×2.3
- Fuel hose 8,0x3,0mm - 1000527471×3
- 211000523869Not stockedfuel line×0.24
- fuel line 11,5x3,5 - 1000454999×0.32
- fuel line 11,5x3,5 - 1000454999×0.34
- 241000523869Not stockedfuel line×0.4
- PROTECTING HOSE - 1000221996×2.5
- washer 10,5 A2C DIN125 - 1000015432×2
- 271000355863Not stockedbracket fuelfilter×1
- 281000335922Not stockedbracket fuelfilter×1
- 291000015376Not stockedcheese head screw×2
- 301000343634Not stockedquick lock coupling×1
