WL25

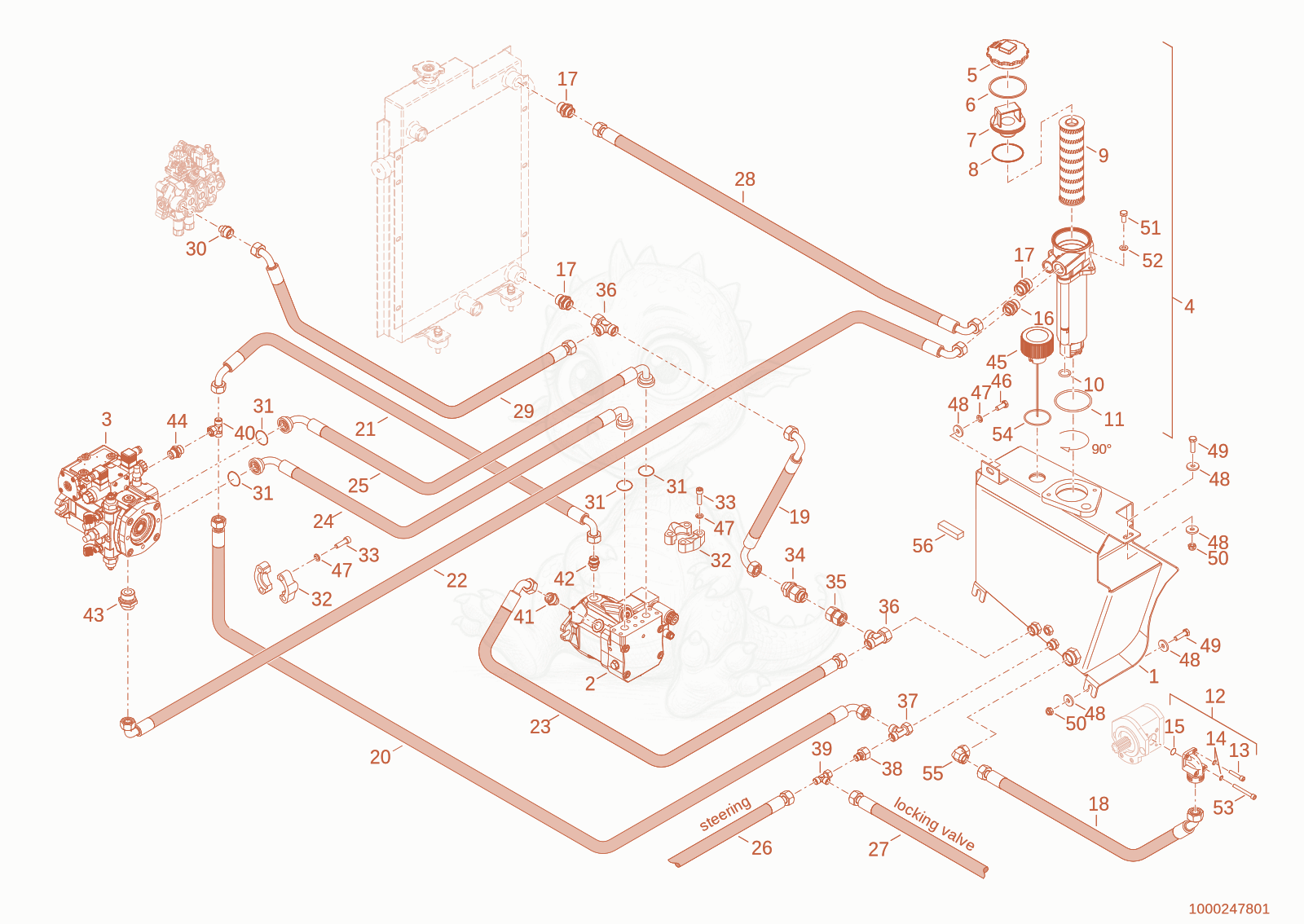

WL25 drive unit Diagram

Exploded parts diagram of the drive unit of a Wacker Neuson WL25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000351286Not stocked
    hydraulic tank×1
  • 21000203035Price
    Displacementmotor 1000203035×1
  • 31000207428Price
    Pump Oil 1000207428×1
  • 41000553808Not stocked
    Conversion kit return-suction filter×1
  • 51000223085Price
    Cover - 1000223085×1
  • 61000225482Price
    Gasket - 1000225482×1
  • 71000226496Price
    SOCKET - 1000226496×1
  • 81000224914Price
    Ring - 1000224914×1
  • 91000537153Price
    Filter Element - 1000537153×1
  • 101000224858Price
    Ring - 1000224858×1
  • 111000224909Price
    Ring - 1000224909×1
  • 121000159947Price
    BFG28-L LK40 - 1000159947×1
  • 131000048165Not stocked
    cheese head screw×4
  • 141000015444Not stocked
    spring washer×4
  • 151000224648Price
    Ring - 1000224648×1
  • 161000085096Price
    GE22LREDOMDA3C - 1000085096×1
  • 171000015565Not stocked
    screw joint×3
  • 181000217828Price
    Slhydr1Sn25Pn280Pn2875L9000 1000217828×1
  • 191000220323Price
    SLHYDR 1SN 16 PN18 0 PN18 90 L460,0 - 1000220323×1
  • 201000222013Price
    SLHYDR 1SN 8,0PN15 0 PN15 45 L600,0 - 1000222013×1
  • 211000221674Price
    SLHYDR 2SN 12 PN15 45 PN15 90 L470,0 0 - 1000221674×1
  • 221000221672Price
    SLHYDR 1SN 20 PN22 75 PN22 75 L1100 45 - 1000221672×1
  • 231000217908Price
    SLHYDR 1SN 16 PN18 0 PN18 90 L1400 - 1000217908×1
  • 241000221682Price
    Slhydr4Sh20Sf34115Sf34180L58000 1000221682×1
  • 251000220109Price
    Slhydr4Sh20Sf34115Sf34180L55000 1000220109×1
  • 261000221547Price
    SLHYDR 1SN 8,0PN10 0 PN10 90 L1900 S - 1000221547×1
  • 271000217454Price
    SLHYDR 1SN 8,0PN10 0 PN10 0 L1100 - 1000217454×1
  • 281000221646Price
    SLHYDR 1SN 16 PN18 0 PN18 90 L430,0 - 1000221646×1
  • 291000220555Price
    SLHYDR 1SN 16 PN18 0 PN18 45 L1500 S - 1000220555×1
  • 301000083056Price
    GE18LR3/8EDOMDA3C - 1000083056×1
  • 311000224256Price
    Ring - 1000224256×4
  • 321000028689Not stocked
    half flange×8
  • 331000048178Not stocked
    cheese head screw×16
  • 341000194721Price
    Valve - 1000194721×1
  • 351000018398Price
    GZ18LA3C - 1000018398×1
  • 361000015517Not stocked
    screw joint×2
  • 371000015539Not stocked
    screw joint×1
  • 381000020688Not stocked
    screw joint×1
  • 391000085089Price
    EL10LOMDA3C - 1000085089×1
  • 401000085108Price
    ET15LOMDA3C - 1000085108×1
  • 411000085088Price
    GE18LM18X1,5EDOMDA3C - 1000085088×1
  • 421000225977Not stocked
    screw connection×1
  • 431000417356Price
    GE22LM33X2EDOMD - 1000417356×1
  • 441000085101Price
    GE15LM22X1,5EDOMDA3C - 1000085101×1
  • 451000231370Price
    FILTER-HYDRAULICS - 1000231370×1
  • 461000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
  • 471000022016Not stocked
    spring washer×17
  • 481000222577Price
    Washer - 1000222577×7
  • 491000015346Not stocked
    hex screw×3
  • 501000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×3
  • 511000223198Price
    SCREW - 1000223198×2
  • 521000015432Price
    washer 10,5 A2C DIN125 - 1000015432×2
  • 531000085460Price
    cheese head screw - 1000085460×1
  • 541000224937Price
    O-RING - 1000224937×1
  • 551000085091Price
    EW28LOMDA3C - 1000085091×1
  • 561000213507Price
    solenoid - 1000213507×1
