WL25

WL25 fuel system Diagram

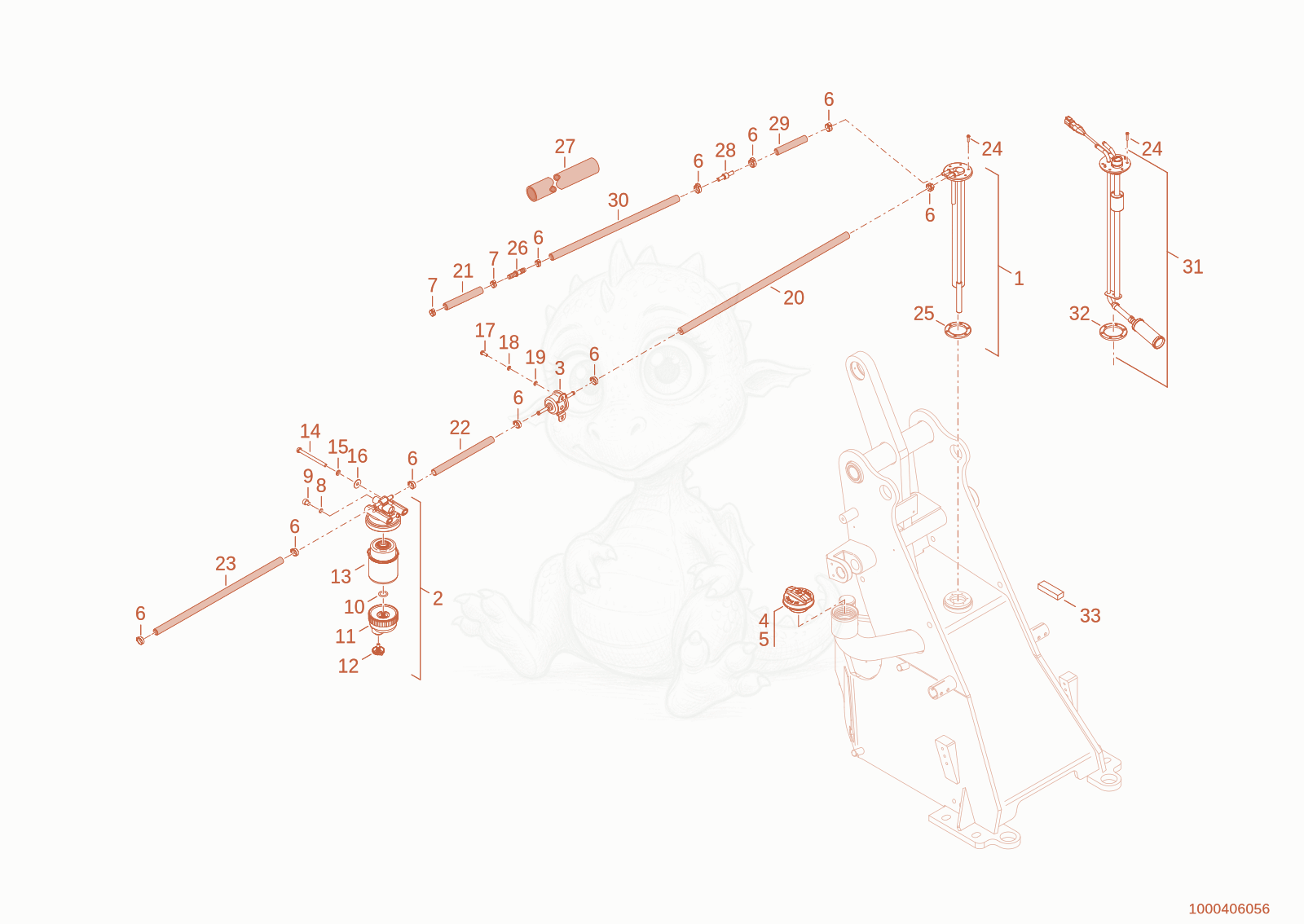

Exploded parts diagram of the fuel system of a Wacker Neuson WL25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000210735Price
    SENSOR-FUEL LEVEL - 1000210735×1
  • 21000255980Price
    Fuel Filter Assy,WL25/30 - 1000255980×1
  • 31000210421Price
    Pump - 1000210421×1
  • 41000298126Price
    LOCK COVER - 1000298126×1
  • 51000211833Price
    Key - 1000211833×1
  • 61000222603Price
    clamp - 1000222603×7
  • 71000222742Price
    HOSE CLAMP - 1000222742×2
  • 81000263172Price
    SEAL - 1000263172×1
  • 91000263134Price
    VENTING PLUG - 1000263134×1
  • 101000263173Price
    seal - 1000263173×1
  • 111000270349Price
    view glass - 1000270349×1
  • 121000263118Price
    DRAIN SCREW - 1000263118×1
  • 131000255796Price
    Filter Element - 1000255796×1
  • 141000085322Price
    hex screw - 1000085322×2
  • 151000030951Not stocked
    spring washer×2
  • 161000013027Not stocked
    washer×2
  • 171000085454Price
    allen screw M6x12-8.8 A2C-DIN912 - 1000085454×2
  • 181000015430Not stocked
    u-washer×2
  • 191000015444Not stocked
    spring washer×2
  • 201000527471Price
    Fuel hose 8,0x3,0mm - 1000527471×2.6
  • 211000560581Not stocked
    fuel line×0.1
  • 221000527471Price
    Fuel hose 8,0x3,0mm - 1000527471×0.5
  • 231000527471Price
    Fuel hose 8,0x3,0mm - 1000527471×0.8
  • 241000085546Price
    ovalhead screw - 1000085546×6
  • 251000225654Price
    Gasket - 1000225654×1
  • 261000209913Price
    HOSE NIPPLE - 1000209913×1
  • 271000217000Price
    PROTECTING HOSE - 1000217000×1.9
  • 281000269379Price
    Diesel non return valve - 1000269379×1
  • 291000527471Price
    Fuel hose 8,0x3,0mm - 1000527471×0.07
  • 301000527471Price
    Fuel hose 8,0x3,0mm - 1000527471×2.4
  • 311000443982Not stocked
    fuel transmitter×1
  • 321000499061Price
    Gasket - 1000499061×1
  • 331000213507Price
    solenoid - 1000213507×1
