WL20

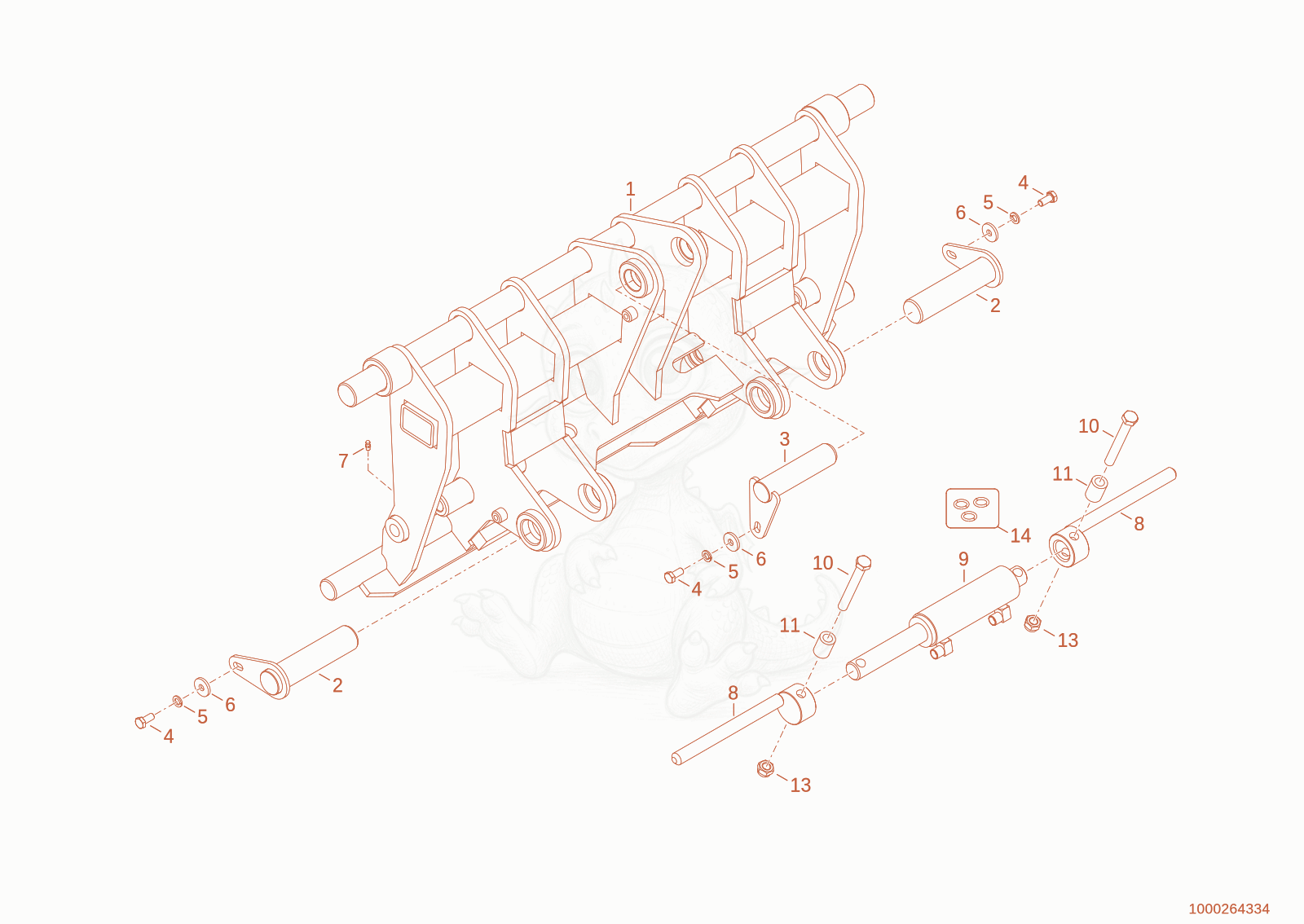

WL20 quickhitch plate Diagram

Exploded parts diagram of the quickhitch plate of a Wacker Neuson WL20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000264309Price
    Adapterframe 1000264309×1
  • 21000224745Price
    Pin 1000224745×2
  • 31000224680Price
    Bolt - 1000224680×1
  • 41000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 51000022016Not stocked
    spring washer×3
  • 61000222577Price
    Washer - 1000222577×3
  • 71000222726Price
    NIPPLE-GREASE - 1000222726×2
  • 81000225295Price
    bolt - 1000225295×2
  • 91000230013Price
    Cylinder 1000230013×1
  • 101000047409Not stocked
    hex screw×2
  • 111000196350Price
    Sleeve - 1000196350×2
  • 131000049060Not stocked
    hexagon nut×2
  • 141000225121Price
    CYLINDER SEAL KIT - 1000225121Unknown×1
  • 141000420615Not stocked
    cylinder seal kit×1
  • 141000422092Not stocked
    cylinder seal kit×1
