WL20

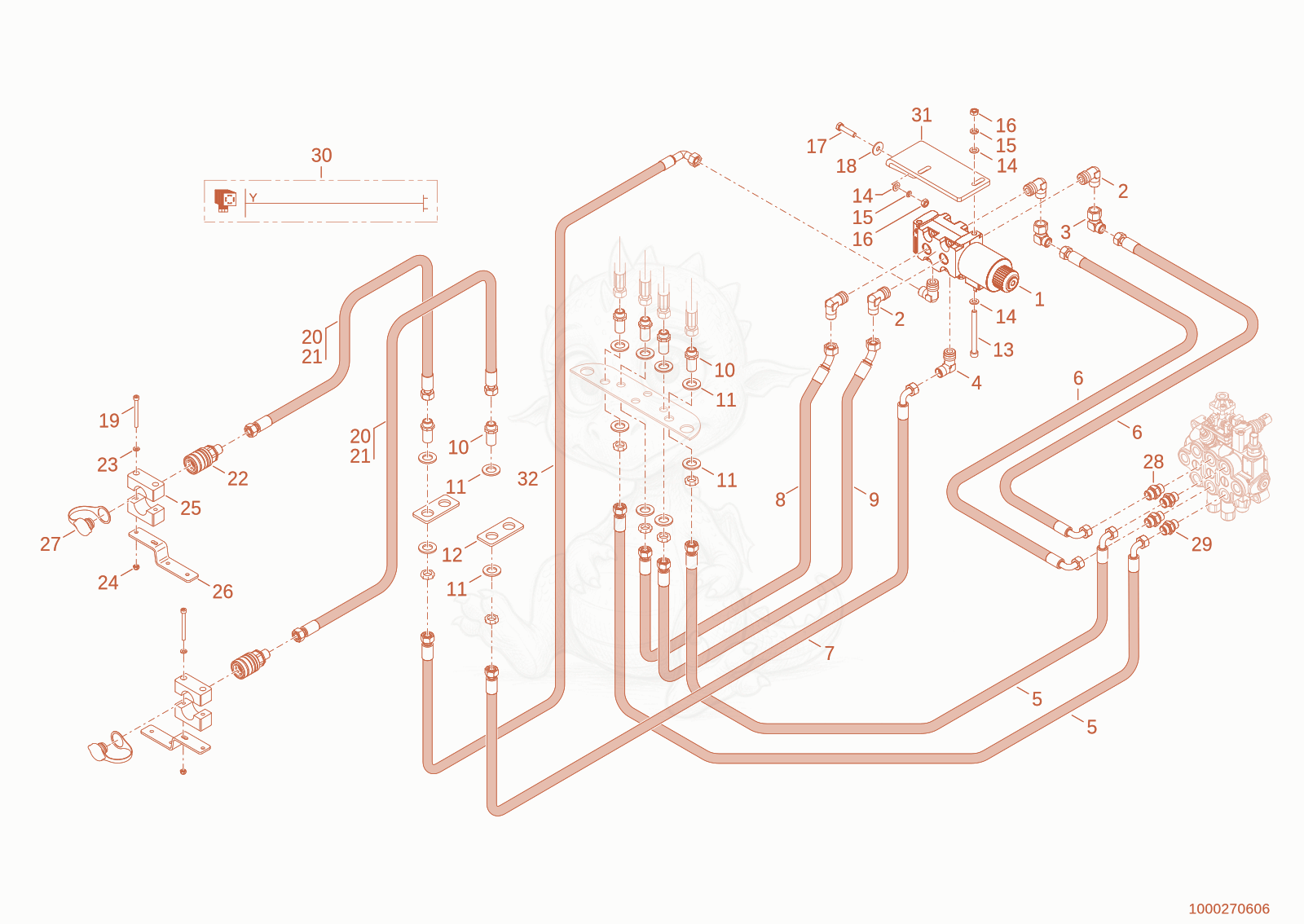

WL20 suppl. Control circuit Diagram
- Drivevalve 1000196743×1
- WES10L/R 1/2" OMD - 1000225925×4
- 31000015510Not stockedscrew joint×2
- WES12L/R 1/2" OMD - 1000225923×2
- SLHYDR 2SN 10 PN12 0 PN12 45 L1600 S - 1000221561×2
- SLHYDR 2SC 8,0PN10 0 PN10 45 L1600 S - 1000221677×2
- SLHYDR 2SN 10 PN12 0 PN12 45 L490,0S - 1000222063×1
- SLHYDR 2SC 8,0PN10 0 PN10 45 L250,0S - 1000263905×1
- SLHYDR 2SC 8,0PN10 0 PN10 45 L220,0S - 1000222044×1
- SV12-LA3C - 1000028480×6
- washer 19 - 1000082625×12
- 121000211398Not stockedbracket×2
- 131000015353Not stockedcheese head screw×2
- 141000015431Not stockedwasher×6
- 151000030951Not stockedspring washer×4
- 161000015406Not stockedhexagon nut×4
- hex screw - 1000085391×2
- 181000013027Not stockedwasher×2
- SCREW-HEX - 1000222854×4
- SLHYDR 2SN 10 PN12 0 PN12 45 L2150 S - 1000221039×2
- SLHYDR 2SN 10 PN12 0 PN12 45 L2300 S - 1000264593×2
- 221000002995Not stockedquick lock coupling×2
- 231000015430Not stockedu-washer×4
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
- BLOCK-CLAMPING - 1000222657×2
- Bracket - 1000205042×2
- dust cap - 1000186757×2
- 281000015491Not stockedscrew joint×2
- GE12LREDOMDA3C - 1000015492×2
- connection cable - 1000232660×1
- BRACKET CHANGEOFF VALVE - 1000211383×1
- SLHYDR 2SN 10 PN12 0 PN12 90 L350,0S - 1000220460×1
