TH755

TH755(416-04) Engine parts Diagram

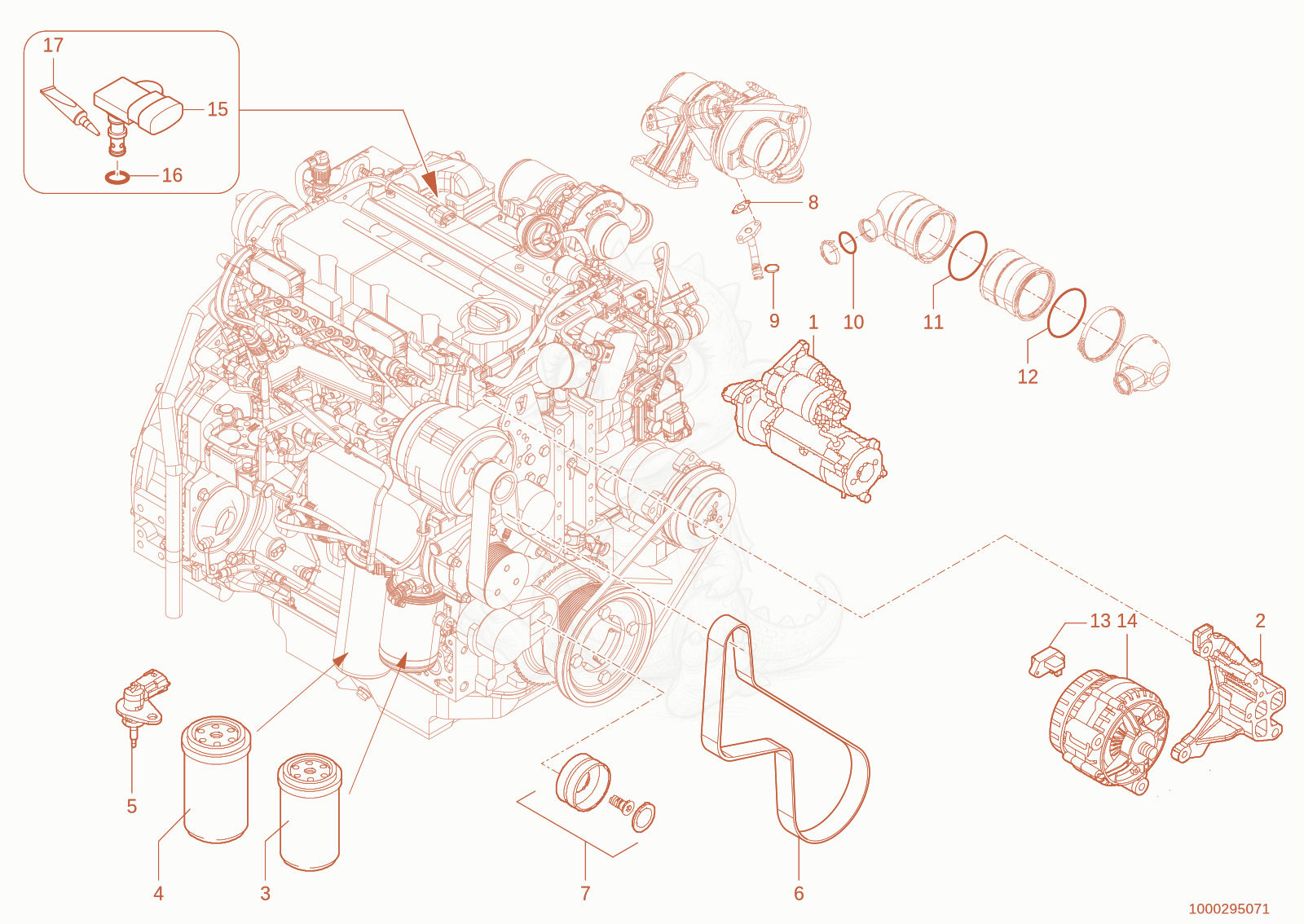

Exploded parts diagram of the Engine parts of a Wacker Neuson TH755(416-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000294994Price
    Starter 1000294994×1
  • 21000294962Price
    Console - 1000294962×1
  • 31000172881Price
    FUEL FILTER - 1000172881×1
  • 41000290304Price
    Engine Oil Filter - 1000290304×1
  • 51000282375Price
    Sensor - 1000282375×1
  • 61000294991Price
    V-belt - 1000294991×1
  • 71000294957Not stocked
    repairing set×1
  • 81000173616Not stocked
    seal×1
  • 91000086748Not stocked
    o-ring×2
  • 101000294993Price
    SEAL - 1000294993×1
  • 111000294992Not stocked
    seal×1
  • 121000294992Not stocked
    seal×2
  • 131000290340Not stocked
    tension regulator×1
  • 141000294961Not stocked
    generator×1
  • 151000329369Price
    Sensor - 1000329369×1
  • 161000329306Price
    Gasket - 1000329306×1
  • 171000170517Not stocked
    sealing compound×1
