TH755

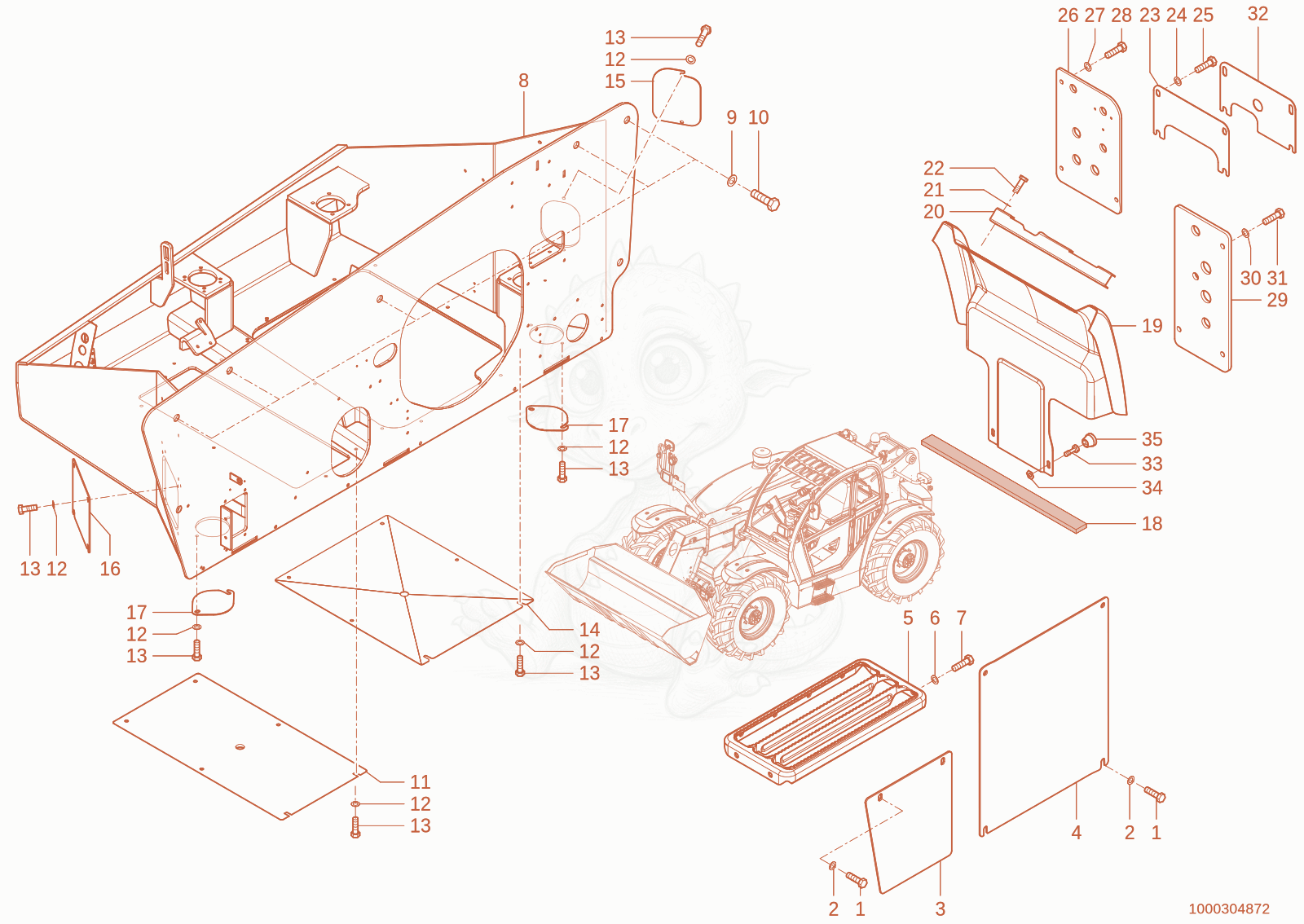

TH755(416-04) trim Diagram
- 11000013009Not stockedhex screw×12
- Washer 10,5 St A2C - 1000092303×12
- 31000270580Not stockedcover plate×1
- 41000270581Not stockedcover plate×1
- 51000270566Not stockedstep grill×1
- 61000048168Not stockedcheese head screw×8
- 71000015431Not stockedwasher×8
- 81000301778Not stockedengine sump×1
- 91000048022Not stockedhex screw×7
- 101000270888Not stockedwasher×7
- 111000301573Not stockedMaintenance sheet metal×1
- Washer 10,5 St A2C - 1000092303×26
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×26
- 141000299543Not stockedMaintenance sheet metal×1
- 151000301023Not stockedcover×1
- 161000273626Not stockedMaintenance cover×2
- 171000158073Not stockedcover×2
- 181000285438Not stockedseal×2
- 191000308372Not stockedtrim×1
- 201000285311Not stockedangle×1
- WASHER - 1000092290×3
- 221000020553Not stockedhex screw×3
- 231000280543Not stockedMaintenance cover×1
- 241000013027Not stockedwasher×3
- hex screw M8x12-8.8 A2C DIN933 - 1000085389×3
- 261000308278Not stockedplate×1
- 271000015431Not stockedwasher×4
- 281000019136Not stockedhex screw×4
- 291000308279Not stockedplate×1
- WASHER - 1000092291×6
- 311000047828Not stockedhex screw×6
- 321000301834Not stockedMaintenance cover×1
- Screw - 1000247651×2
- lock plate - 1000247655×2
- Button - 1000265805×2
