TH755

TH755(416-04) service brake Diagram

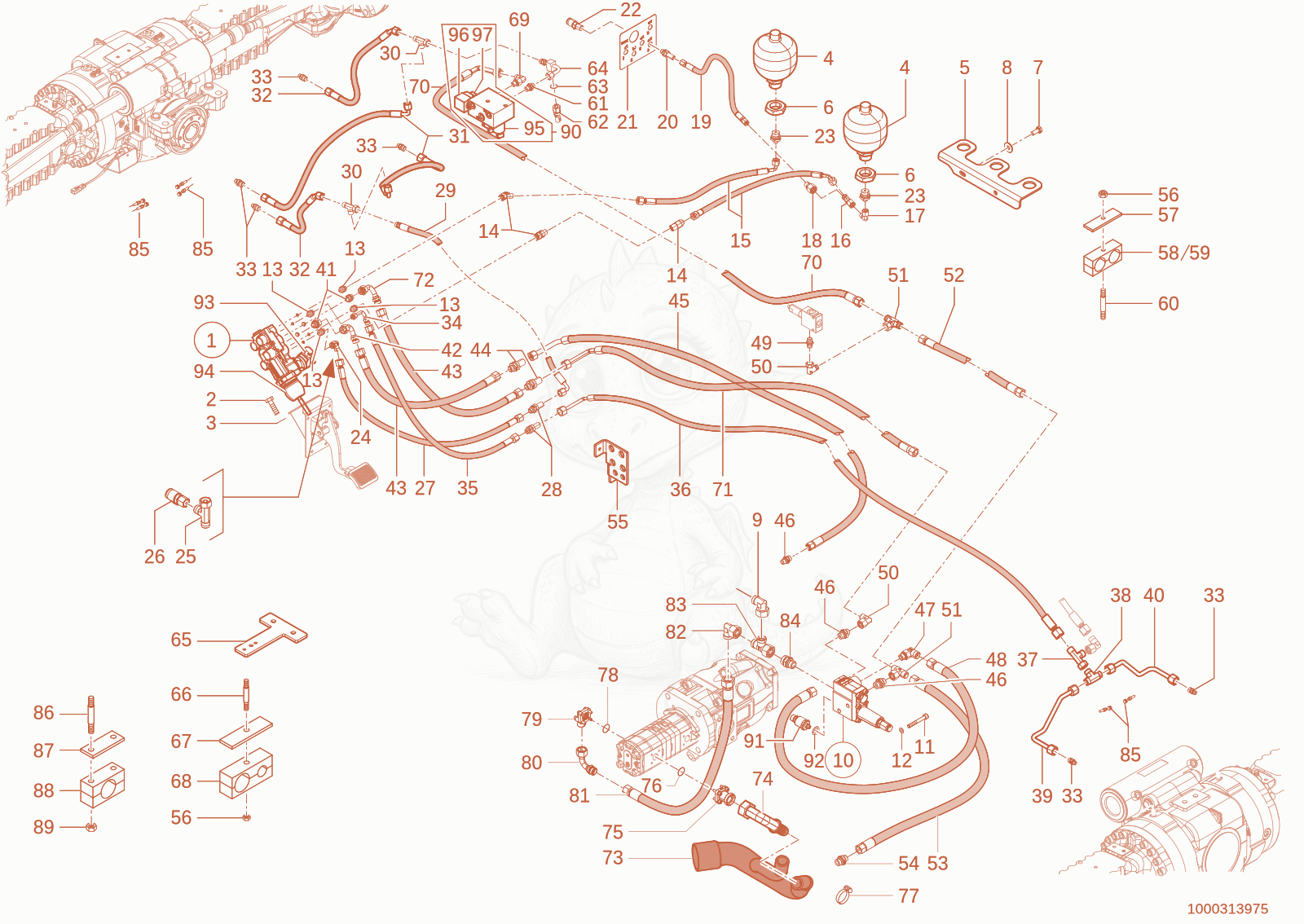

Exploded parts diagram of the service brake of a Wacker Neuson TH755(416-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000269360Not stocked
    brake valve×1
  • 21000015343Not stocked
    hex screw×4
  • 31000015431Not stocked
    washer×4
  • 41000269591Price
    Pressureaccumulator 1000269591×2
  • 51000277173Not stocked
    bracket×1
  • 61000049039Not stocked
    hexagon nut×2
  • 71000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 81000092291Price
    WASHER - 1000092291×2
  • 91000015513Not stocked
    screw joint×1
  • 101000269371Price
    Shutoffvalve 1000269371×1
  • 111000085465Price
    cheese head screw - 1000085465×2
  • 121000015431Not stocked
    washer×2
  • 131000085130Price
    GE08L9/16UNF EDOMDA3C - 1000085130×4
  • 141000189560Price
    EW 08 L 45° - 1000189560×3
  • 151000271412Not stocked
    Hose×2
  • 161000015515Not stocked
    screw joint×1
  • 171000000542Price
    EW08LOMD - 1000000542×1
  • 181000085109Price
    RED08/06LOMDA3C - 1000085109×1
  • 191000288621Not stocked
    Hose×1
  • 201000028417Price
    SV06-L - 1000028417×1
  • 211000301916Not stocked
    cover plate×1
  • 221000270654Not stocked
    minimess point×1
  • 231000052155Not stocked
    screw joint×2
  • 241000000542Price
    EW08LOMD - 1000000542×1
  • 251000015515Not stocked
    screw joint×1
  • 261000152207Not stocked
    minimess point×1
  • 271000300474Not stocked
    Hose×1
  • 281000085075Price
    SV08-L - 1000085075×2
  • 291000301260Not stocked
    Hose×1
  • 301000015515Not stocked
    screw joint×2
  • 311000308816Not stocked
    Hose×2
  • 321000299237Not stocked
    Hose×2
  • 331000114136Price
    GE8LM10X1O-RING A3C - 1000114136×8
  • 341000279570Price
    connection piece - 1000279570×1
  • 351000300475Not stocked
    Hose×1
  • 361000301284Not stocked
    Hose×1
  • 371000015515Not stocked
    screw joint×1
  • 381000015534Not stocked
    screw joint×1
  • 391000301250Not stocked
    connection piece×1
  • 401000301262Not stocked
    connection piece×1
  • 411000082846Price
    GE12L9/16UNFOMDA3C - 1000082846×2
  • 421000037080Not stocked
    connection piece×1
  • 431000251504Not stocked
    Hose×2
  • 441000028480Price
    SV12-LA3C - 1000028480×2
  • 451000299747Not stocked
    Hose×1
  • 461000028596Not stocked
    screw joint×3
  • 471000028464Not stocked
    screw joint×1
  • 481000279336Not stocked
    Hose×1
  • 491000015492Price
    GE12LREDOMDA3C - 1000015492×1
  • 501000000573Not stocked
    screw joint×2
  • 511000015519Price
    ET12LOMDA3C - 1000015519×2
  • 521000284173Not stocked
    Hose×1
  • 531000277416Not stocked
    Hose×1
  • 541000085078Price
    GE12LM14X1,5EDOMDA3C - 1000085078×1
  • 551000300297Not stocked
    bracket×1
  • 561000013022Not stocked
    hexagon nut×2
  • 571000031230Not stocked
    cover plate×1
  • 581000031992Price
    CLAMP - 1000031992×1
  • 591000031626Price
    CLAMP - 1000031626×1
  • 601000048896Not stocked
    stud×1
  • 611000015488Not stocked
    screw joint×1
  • 621000276820Price
    pressure switch - 1000276820×1
  • 631000050105Not stocked
    seal ring×1
  • 641000270364Not stocked
    connection piece×1
  • 651000279961Not stocked
    bracket×1
  • 661000048894Not stocked
    stud×1
  • 671000031245Not stocked
    cover plate×1
  • 681000168654Price
    CLAMP - 1000168654×1
  • 691000028710Not stocked
    screw joint×1
  • 701000301282Not stocked
    Hose×1
  • 711000299395Not stocked
    Hose×1
  • 721000051026Not stocked
    connection piece×1
  • 731000286175Not stocked
    preshaped tube×1
  • 741000162985Price
    hose fitting - 1000162985×1
  • 751000021697Not stocked
    screw joint×1
  • 761000090263Price
    O-RING - 1000090263×1
  • 771000263432Price
    CLAMP - 1000263432×1
  • 781000090406Price
    O-RING - 1000090406×1
  • 791000021696Not stocked
    screw joint×1
  • 801000167361Price
    CONNECTION PIECE - 1000167361×1
  • 811000290043Not stocked
    Hose×1
  • 821000015513Not stocked
    screw joint×1
  • 831000015517Not stocked
    screw joint×1
  • 841000015559Not stocked
    screw joint×1
  • 851000274947Price
    VENTING VALVE - 1000274947×6
  • 861000048887Price
    STUD - 1000048887×2
  • 871000031260Not stocked
    cover plate×1
  • 881000130181Price
    CLAMP - 1000130181×1
  • 891000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 901000315932Not stocked
    solenoid valve×1
  • 911000282161Price
    Sensor - 1000282161×1
  • 921000085675Price
    SEAL RING - 1000085675×1
  • 931000334493Price
    Inch-Sensor - 1000334493×1
  • 941000334492Not stocked
    bellow×1
  • 951000154022Price
    valve - 1000154022×2
  • 961000154025Not stocked
    solenoid×1
  • 971000412075Not stocked
    valve×1
