TH522

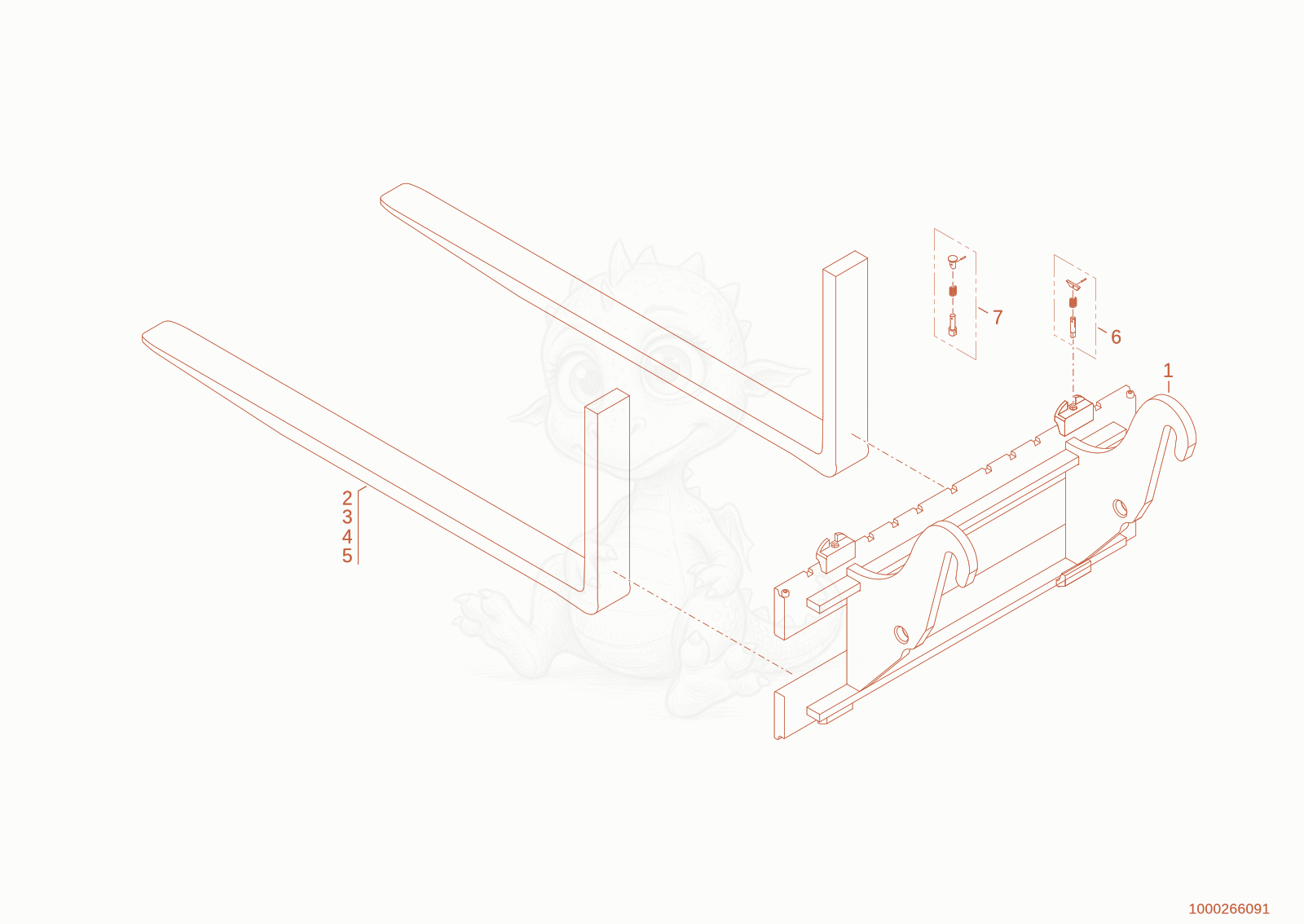

TH522STAGEV pallet forks Diagram

Exploded parts diagram of the pallet forks of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000226963Price
    Palletforks 1000226963×1
  • 21000226875Price
    Forkarms 1000226875×1
  • 31000226874Not stocked
    fork arms×1
  • 41000226873Price
    Forkarms 1000226873×1
  • 51000226880Not stocked
    fork arms×1
  • 61000203006Price
    Locking device - 1000203006×1
  • 61000363097Price
    FIXING - 1000363097×2
  • 71000214115Price
    Locking device - 1000214115×1
