TH522

TH522STAGEV drive Diagram

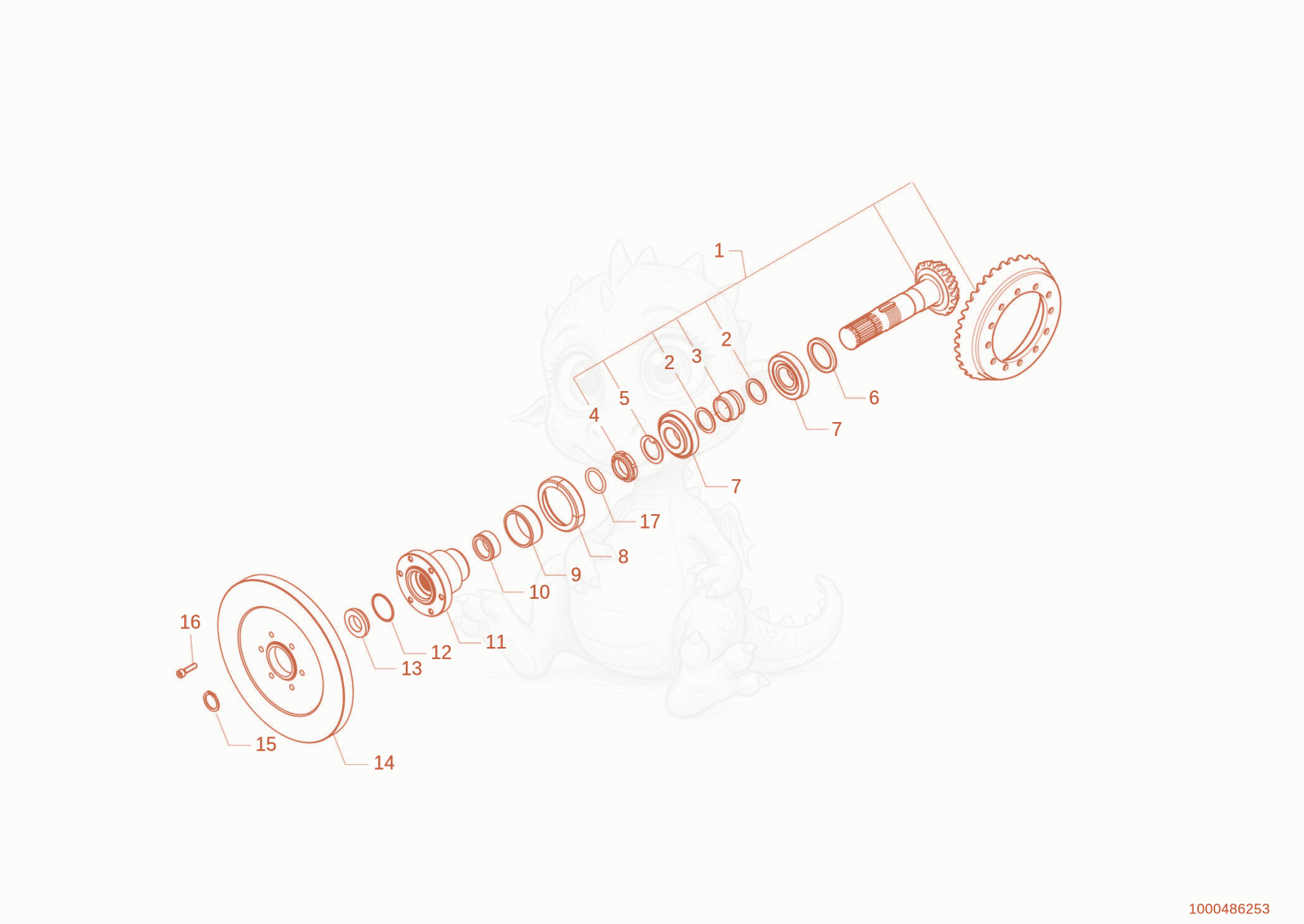

Exploded parts diagram of the drive of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000402241Not stocked
    angle drive×1
  • 21000098857Price
    Washer - 1000098857×2
  • 31000098636Price
    BUSHING - 1000098636×1
  • 41000098258Price
    set nut - 1000098258×1
  • 51000098859Price
    lock plate - 1000098859×1
  • 61000462437Not stocked
    regulation disc set×1
  • 71000098257Price
    Bearing - 1000098257×2
  • 81000368809Not stocked
    seal ring×1
  • 91000486251Price
    Bushing - 1000486251×1
  • 101000377374Price
    Bushing - 1000377374×1
  • 111000377667Price
    Flange - 1000377667×1
  • 121000267590Price
    O-Ring - 1000267590×1
  • 131000377376Price
    Washer - 1000377376×1
  • 141000354338Not stocked
    friction plate×1
  • 151000377378Not stocked
    lock ring×1
  • 161000486245Price
    Screw - 1000486245×1
  • 171000377375Price
    O-ring - 1000377375×1
