TH522

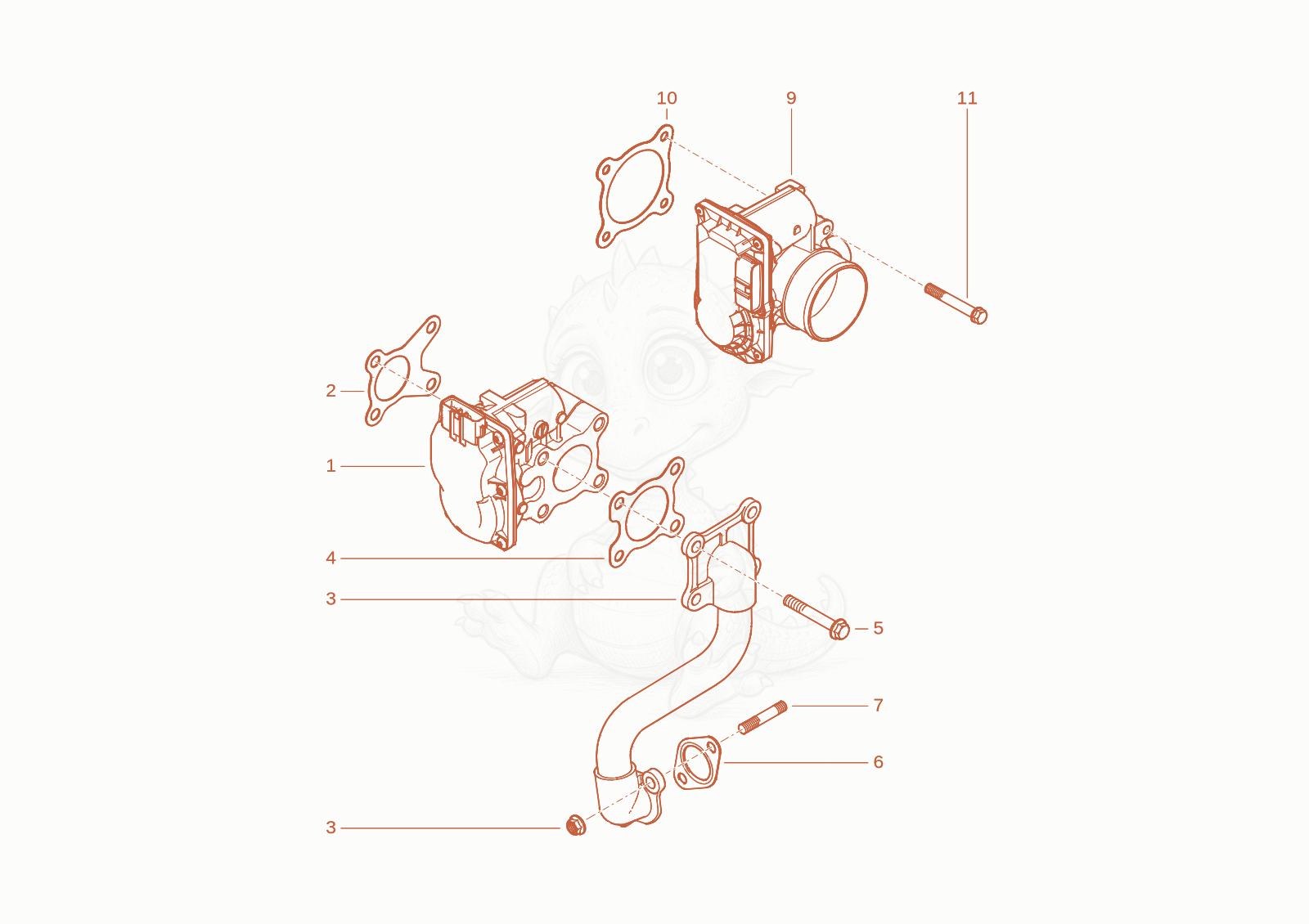

TH522STAGEV speed actuating Diagram

Exploded parts diagram of the speed actuating of a Wacker Neuson TH522STAGEV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000389201Price
    manifold - 1000389201×1
  • 21000389202Price
    seal - 1000389202×1
  • 31000389195Not stocked
    pipe line×1
  • 41000389203Price
    seal - 1000389203×1
  • 51000389402Price
    screw - 1000389402×4
  • 61000321019Not stocked
    exh.manifold gasket×1
  • 71000321178Not stocked
    stud bolt×2
  • 81000199524Price
    Nut - 1000199524×2
  • 91000389254Price
    manifold - 1000389254×1
  • 101000389256Price
    seal - 1000389256×1
  • 111000205468Price
    screw - 1000205468×4
