TH412 Telehandler

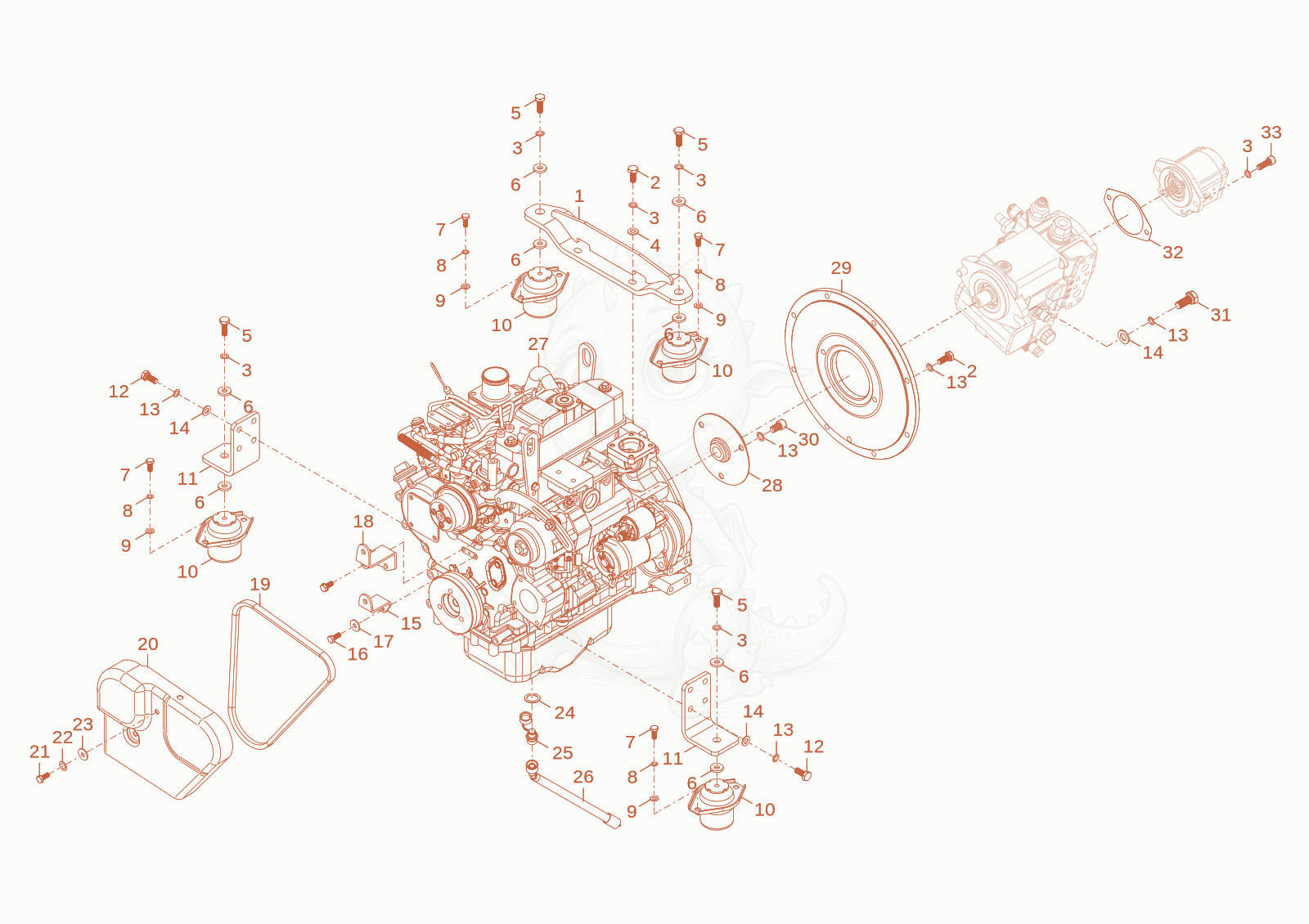

TH412 Engine attachments parts Diagram
- Traverse 1000185799×1
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×12
- 31000022016Not stockedspring washer×14
- washer 10,5 A2C DIN125 - 1000015432×4
- 51000015364Not stockedhex screw×4
- Washer - 1000222577×4
- 71000013008Not stockedhex screw×8
- 81000030951Not stockedspring washer×8
- 91000015431Not stockedwasher×8
- hydro.bearing - 1000004321×4
- Bearing angle - 1000185798×2
- 121000047687Not stockedhex screw×8
- 131000022017Not stockedspring washer×13
- Washer - 1000222611×10
- PLATE - 1000236364×1
- HEX SCREW - 1000085382×2
- 171000015430Not stockedu-washer×2
- Bracket - 1000236320×1
- V-belt - 1000246252×1
- cover - 1000235774×1
- 211000013008Not stockedhex screw×2
- 221000030951Not stockedspring washer×2
- Washer - 1000222875×2
- seal ring - 1000222583×1
- 251000034616Not stockeddrain coupling×1
- Hose - 1000219580×1
- 271000462377Not stockeddiesel engine×1
- clutch flange - 1000237228×1
- Flange 1000185800×1
- 301000048297Not stockedcheese head screw×3
- cheese head screw - 1000085476×8
- SEAL - 1000225421×1
- 331000015376Not stockedcheese head screw×2
