TH412 Telehandler

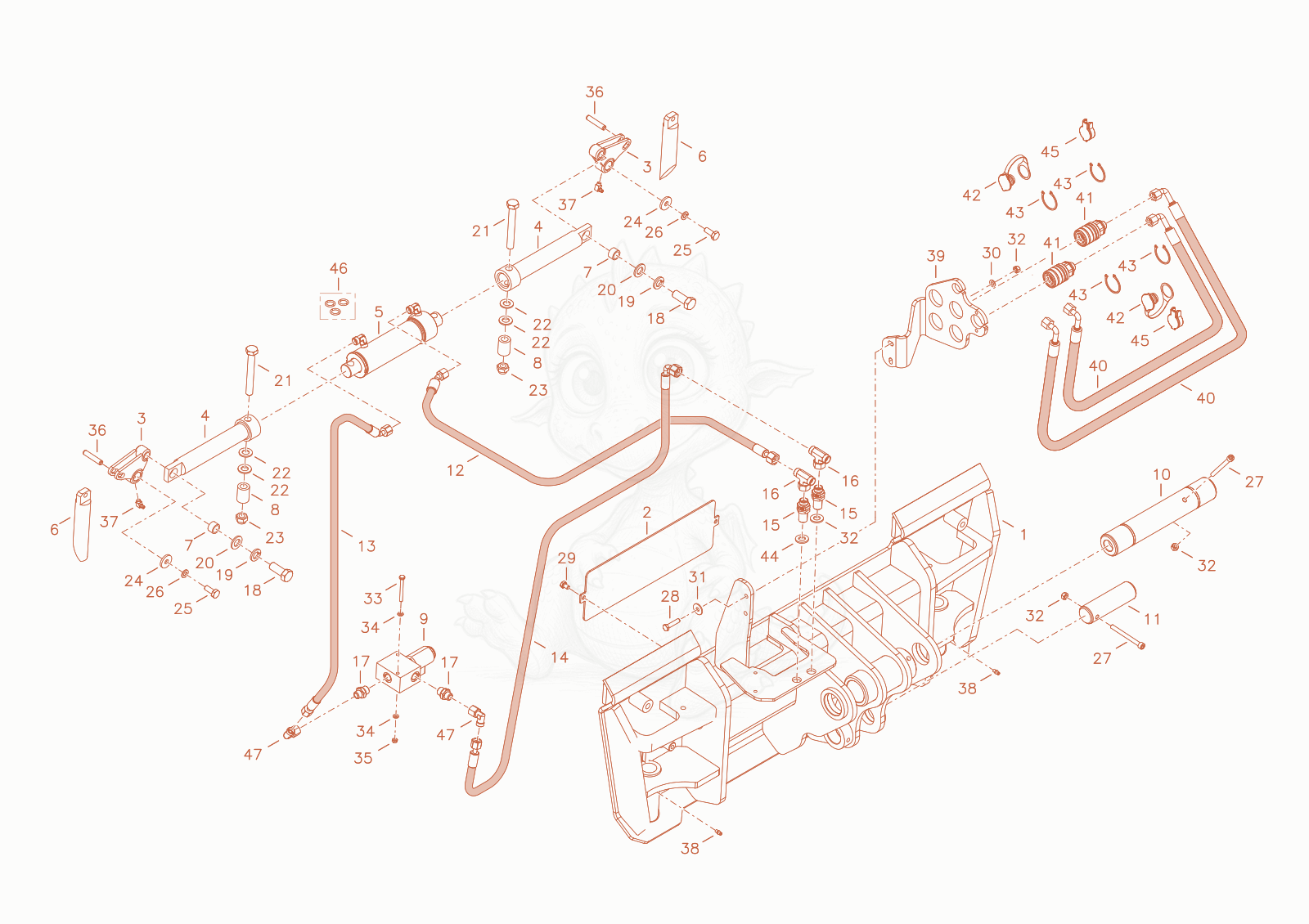

TH412 quickhitch plate Diagram
- Adapterframe 1000292559×1
- 21000478430Not stockedcover plate×1
- 31000546207Not stockedLEVER×2
- Pin Locking2 1000256009×2
- Cylinder - 1000354340×1
- Bolt - 1000224822×2
- Sleeve - 1000262757×2
- Sleeve - 1000196350×2
- VALVE-SOLENOID - 1000243814×1
- Bolt 1000187687×1
- bolt - 1000187686×1
- SLHYDR 2SC 8,0PN10 30 PN12 0 L460,0 - 1000411886×1
- 131000386649Not stockedHose×1
- 141000356874Not stockedHose×1
- SV12-LA3C - 1000028480×2
- ET12LOMDA3C - 1000015519×2
- 171000226177Not stockedscrew connection×1
- hex screw - 1000109786×2
- spring washer - 1000082633×2
- WASHER - 1000021001×2
- 211000047409Not stockedhex screw×2
- 221000019126Not stockedu-washer×4
- 231000049060Not stockedhexagon nut×2
- Washer - 1000222577×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
- 261000022016Not stockedspring washer×2
- INNER HEXAGON SCREW - 1000223831×2
- hex screw - 1000085391×2
- hex screw M8x12-8.8 A2C DIN933 - 1000085389×2
- 301000015431Not stockedwasher×2
- 311000013027Not stockedwasher×2
- 321000013022Not stockedhexagon nut×4
- hex screw M6x60-8.8 A2C-DIN931 - 1000085312×2
- 341000015430Not stockedu-washer×4
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- cotter pin - 1000118414×2
- NIPPLE-GREASE - 1000223029×2
- NIPPLE-GREASE - 1000222726×2
- Bracket 1000296674×1
- SLHYDR 2SN 10 PN12 90 PN12 90 L650,0 270 - 1000296677×2
- 411000002995Not stockedquick lock coupling×2
- dust cap - 1000186757×2
- lock ring - 1000095360×4
- washer 19 - 1000082625×4
- dust cap - 1000226161×2
- 461000468985Not stockedcylinder seal kit×1
- 471000015510Not stockedscrew joint×2
