TH412 Telehandler

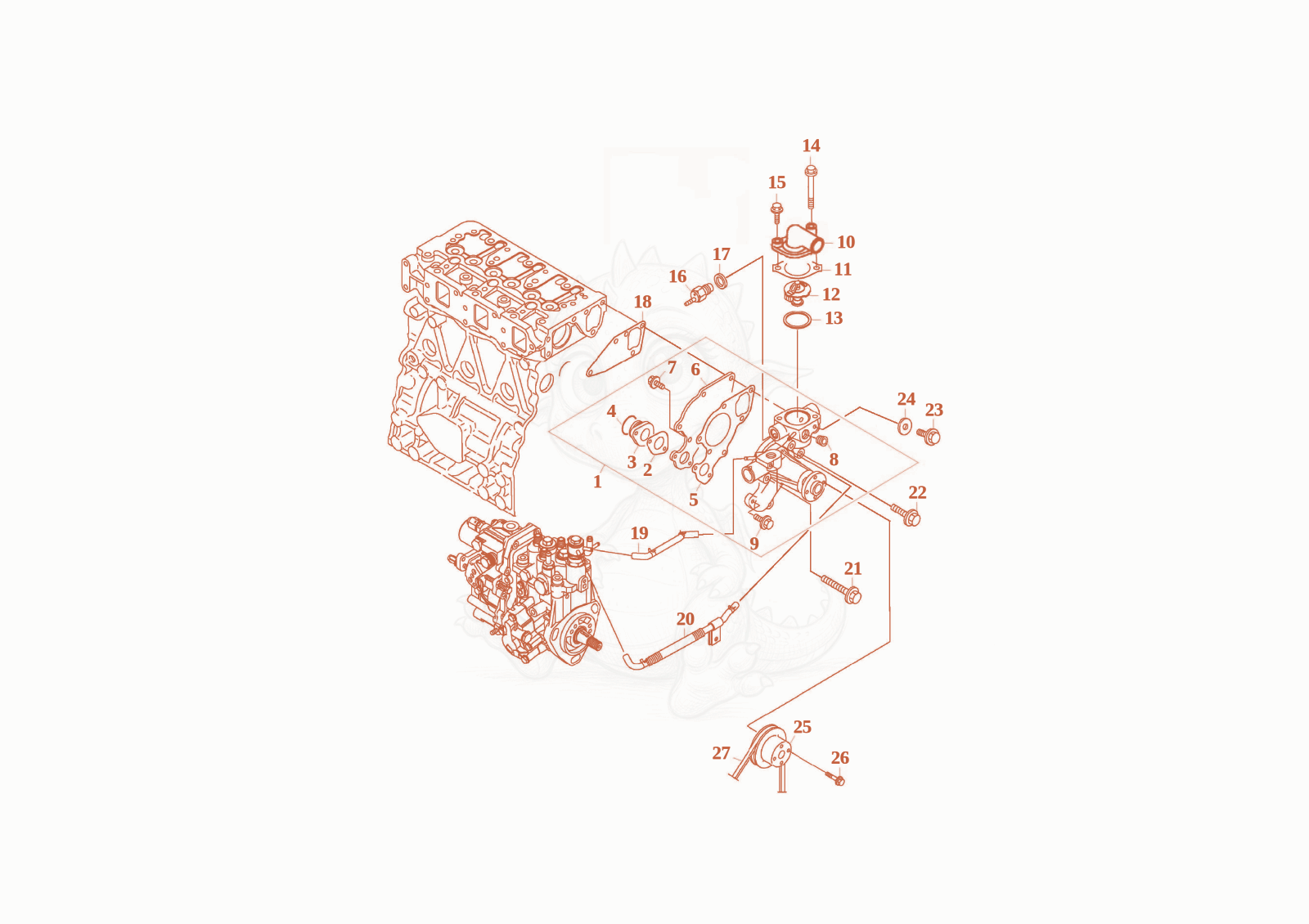

TH412 water pump Diagram
- WATER PUMP - 1000244142×1
- seal water pump - 1000108129×1
- PIPE LINE - 1000108151×1
- O-RING - 1000244141×1
- SEAL - 1000108153×1
- PLATE - 1000134803×1
- hex screw - 1000098692×2
- lock screw - 1000063420×1
- Screw - 1000035840×1
- thermostat cover - 1000135704×1
- 111000012548Not stockedgasket thermostat×1
- thermostat - 1000115256×1
- 131000012550Not stockedgasket thermostat×1
- 141000063320Not stockedhex screw×1
- 151000063337Not stockedhex screw×1
- 161000003892Not stockedtemperature switch×1
- 171000002929Not stockedseal ring×1
- SEAL - 1000108154×1
- pipe line - 1000108159×1
- PIPE LINE - 1000108156×1
- HEX SCREW - 1000085184×3
- SCREW - 1000085194×1
- hex screw - 1000085173×1
- Belt pulley - 1000035854×1
- SCREW - 1000109431×4
- V-belt - 1000246252×1
