RD25 ROLLER,DOUBLE DRUM

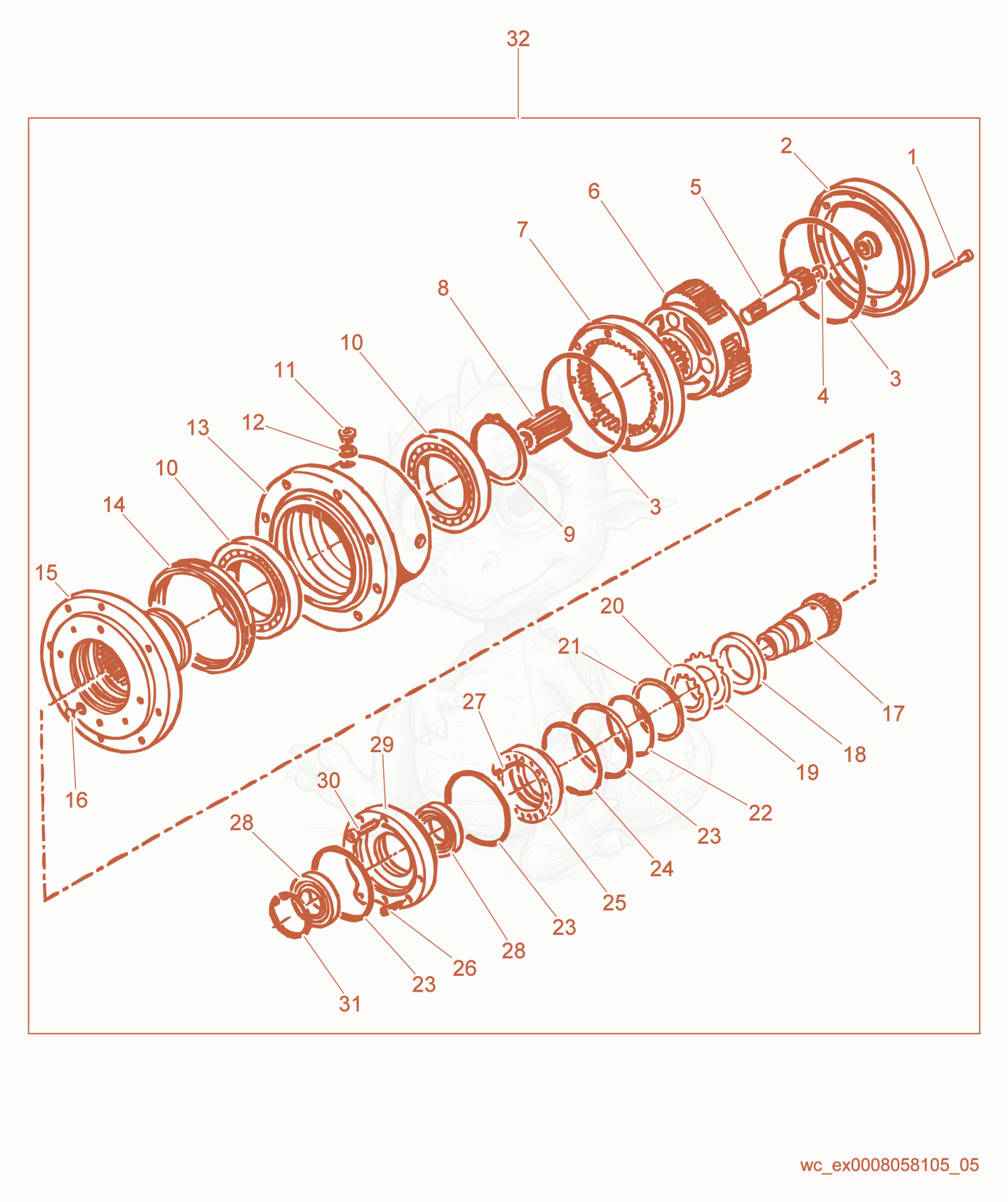

RD25 Driving Drum Reduction Gear Diagram
- 15000112794Not stockedBolt×8
- 25000151600Not stockedCover×1
- 35000112743Not stockedO-Ring×2
- 45000151603Not stockedPad×1
- GEAR - 5000151604×1
- 65000151605Not stockedReduction gear×1
- 75000151606Not stockedRing×1
- 85000151607Not stockedGear×1
- 95000112853Not stockedRetaining ring×1
- BEARING - 5000112713×2
- 115000151608Not stockedPlug (threaded)×2
- WASHER-COPPER - 5000112837×2
- coupling - 5000151609×1
- SEAL - 5000113066×1
- 155000151610Not stockedHub×1
- O-ring - 5000112739×1
- 175000151611Not stockedShaft×1
- SPACER - 5000151612×1
- 195000110130Not stockedDisc×9
- 205000110131Not stockedDisc×8
- Ring - 5000113068×1
- O-RING - 5000151615×1
- O-ring - 5000112742×3
- Ring - 5000113067×1
- 255000151616Not stockedPiston×1
- 265000112791Not stockedBolt×8
- spring - 5000151617×26
- 285000151618Not stockedBearing×2
- 295000151619Not stockedFlange×1
- 305000113469Not stockedBolt×4
- Ring - 5000112851×1
- 325000155410Not stockedGear×1
