RD24e-100c

RD24-100CE cooling (engine/hydraulic oil) Diagram

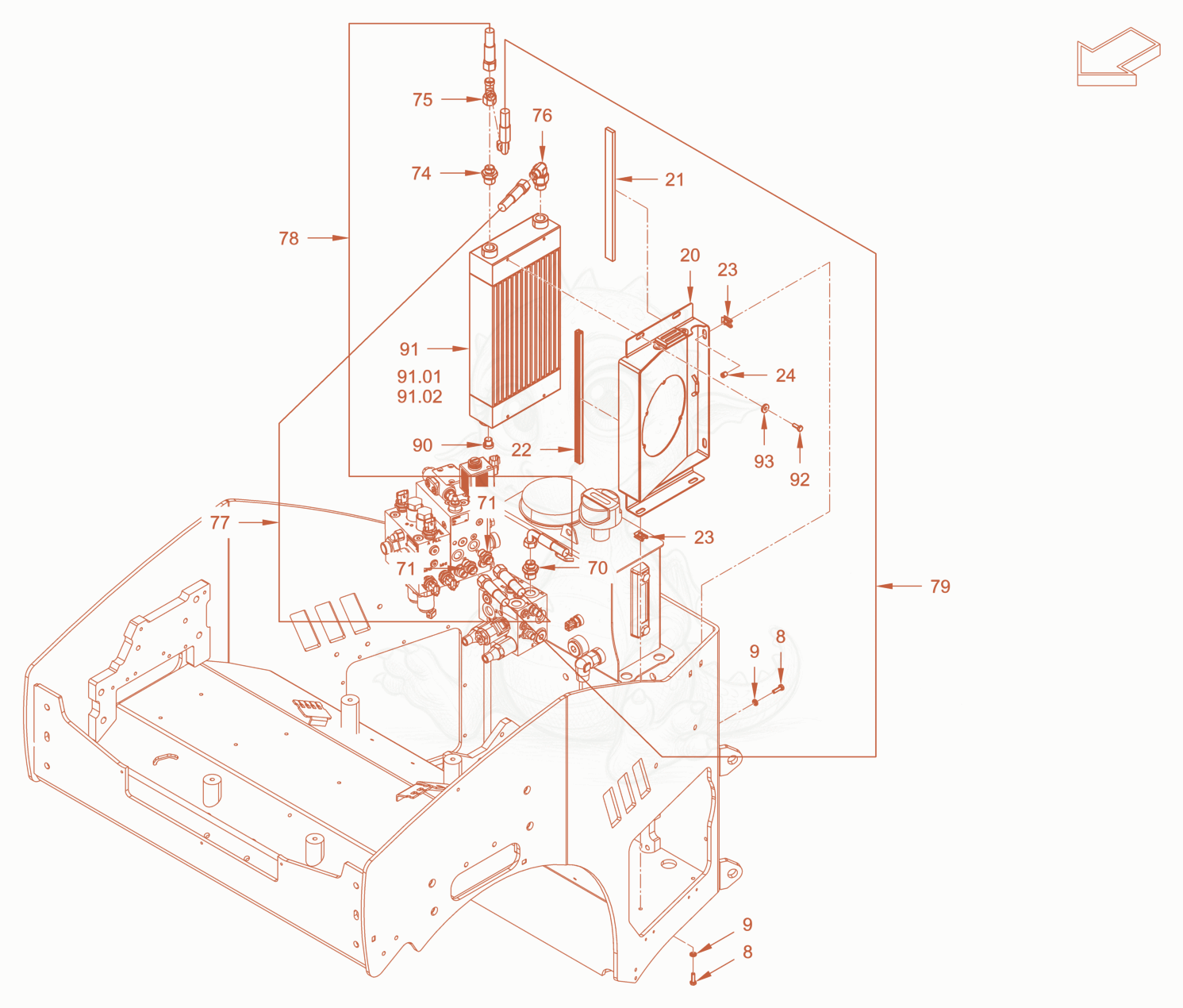

Exploded parts diagram of the cooling (engine/hydraulic oil) of a Wacker Neuson RD24-100CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 85100012608Price
    Hexagon screw - 5100012608×4
  • 95100012965Price
    Locking washer - 5100012965×4
  • 205100073213Not stocked
    console×1
  • 215100011866Price
    Sealing tape - 5100011866×0.31
  • 225100073517Not stocked
    edge protection×0.31
  • 235100011544Price
    Clip nut - 5100011544×4
  • 245100073247Not stocked
    protective cap×1
  • 705100013433Price
    Straight screwed socket - 5100013433×1
  • 715100013475Price
    Straight screwed socket - 5100013475×2
  • 745100013433Price
    Straight screwed socket - 5100013433×1
  • 755100013613Price
    Elbow adjustable - 5100013613×1
  • 765100073260Not stocked
    elbow adjustable×1
  • 775100073079Not stocked
    hose×1
  • 785100073137Not stocked
    hose×1
  • 795100073158Not stocked
    hose×1
  • 905100022914Price
    locking screw - 5100022914×2
  • 915100011996Price
    Oil cooler - 5100011996×1
  • 915100012444Price
    Screw plug - 5100012444×1
  • 915100013000Price
    Sealing ring - 5100013000×1
  • 925100012600Price
    Hexagon screw - 5100012600×4
  • 935100011636Price
    Washer - 5100011636×4
