RD24e-100c

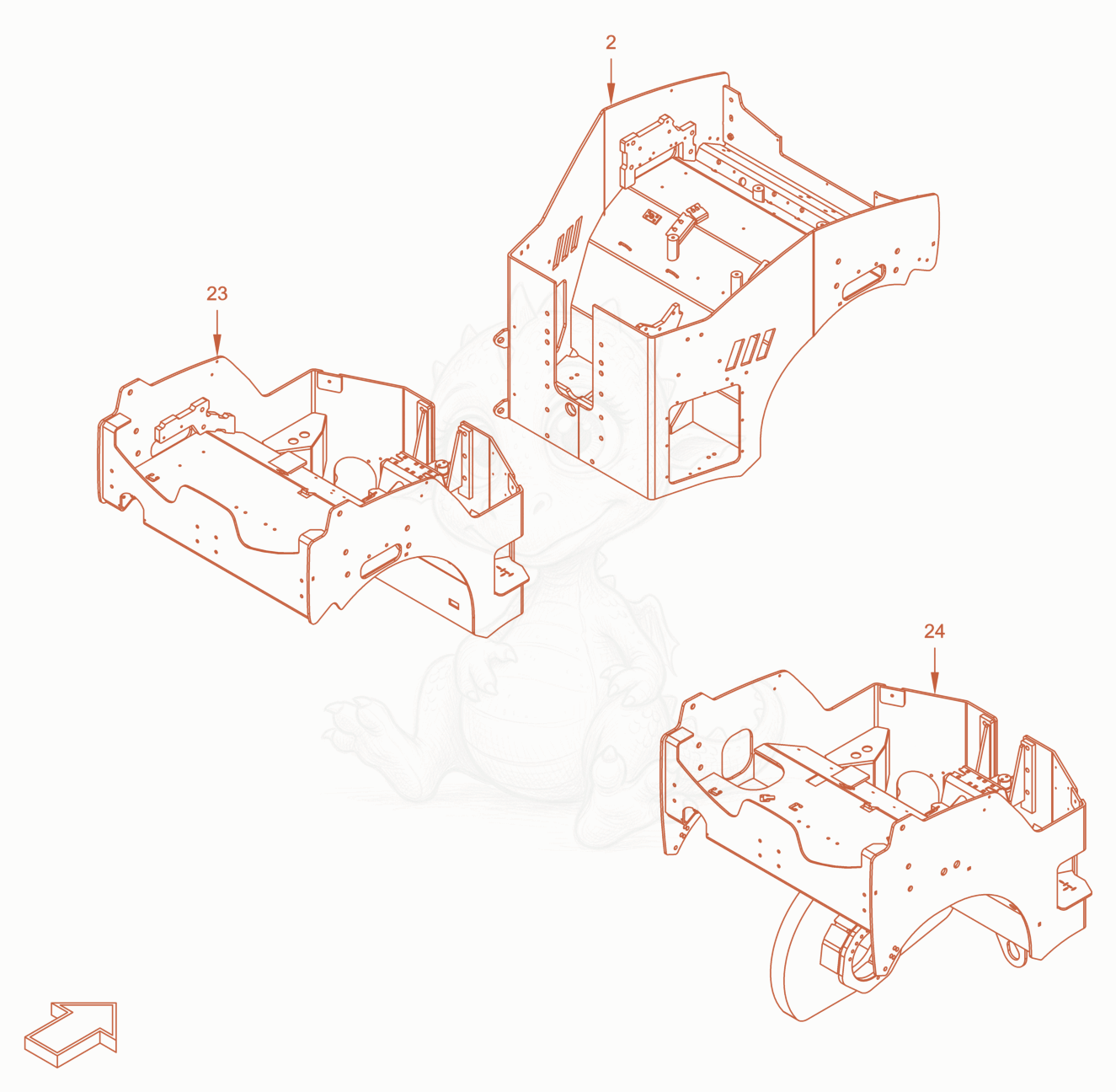

RD24-100CE main frame and assemblies Diagram

Exploded parts diagram of the main frame and assemblies of a Wacker Neuson RD24-100CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100076218Not stocked
    front frame part×1
  • 235100012207Price
    Rear frame part - 5100012207×1
  • 245100012329Price
    Rear frame part - 5100012329×1
