RD24-100CE main frame and assemblies Diagram

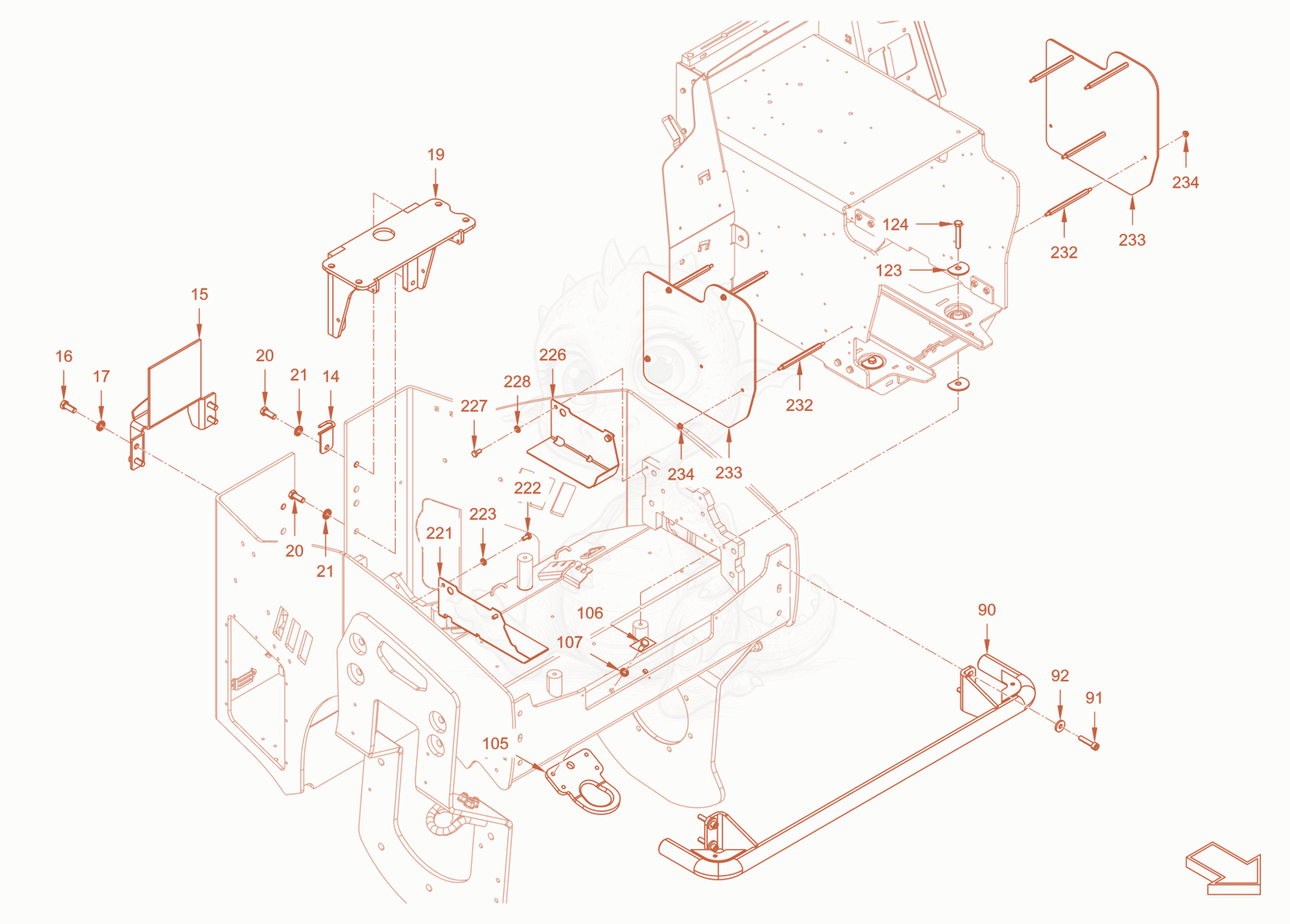

Exploded parts diagram of the main frame and assemblies of a Wacker Neuson RD24-100CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 145100077754Not stocked
    holder×1
  • 155100052879Not stocked
    metal plate×1
  • 165100012626Price
    Hexagon screw - 5100012626×4
  • 175100012968Price
    Locking washer - 5100012968×4
  • 195100076294Not stocked
    holder×1
  • 205100012626Price
    Hexagon screw - 5100012626×4
  • 215100012968Price
    Locking washer - 5100012968×4
  • 905100076306Not stocked
    ramming protection×2
  • 915100022994Price
    cheese-head screw - 5100022994×8
  • 925100013128Price
    Washer - 5100013128×8
  • 1055100013076Price
    Towing loop - 5100013076×1
  • 1065100011479Price
    Hexagon screw - 5100011479×4
  • 1075100012967Price
    Locking washer - 5100012967×4
  • 1235100012212Price
    Washer - 5100012212×8
  • 1245100076220Not stocked
    hexagon screw×4
  • 2215100076155Not stocked
    metal plate×1
  • 2225100012515Price
    Hexagon screw - 5100012515×2
  • 2235100012966Price
    Locking washer - 5100012966×2
  • 2265100076167Not stocked
    metal plate×1
  • 2275100012515Price
    Hexagon screw - 5100012515×2
  • 2285100012966Price
    Locking washer - 5100012966×2
  • 2325100076179Not stocked
    bolt×8
  • 2335100076191Not stocked
    cover×2
  • 2345100023132Price
    hexagonal nut - 5100023132×8
