RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

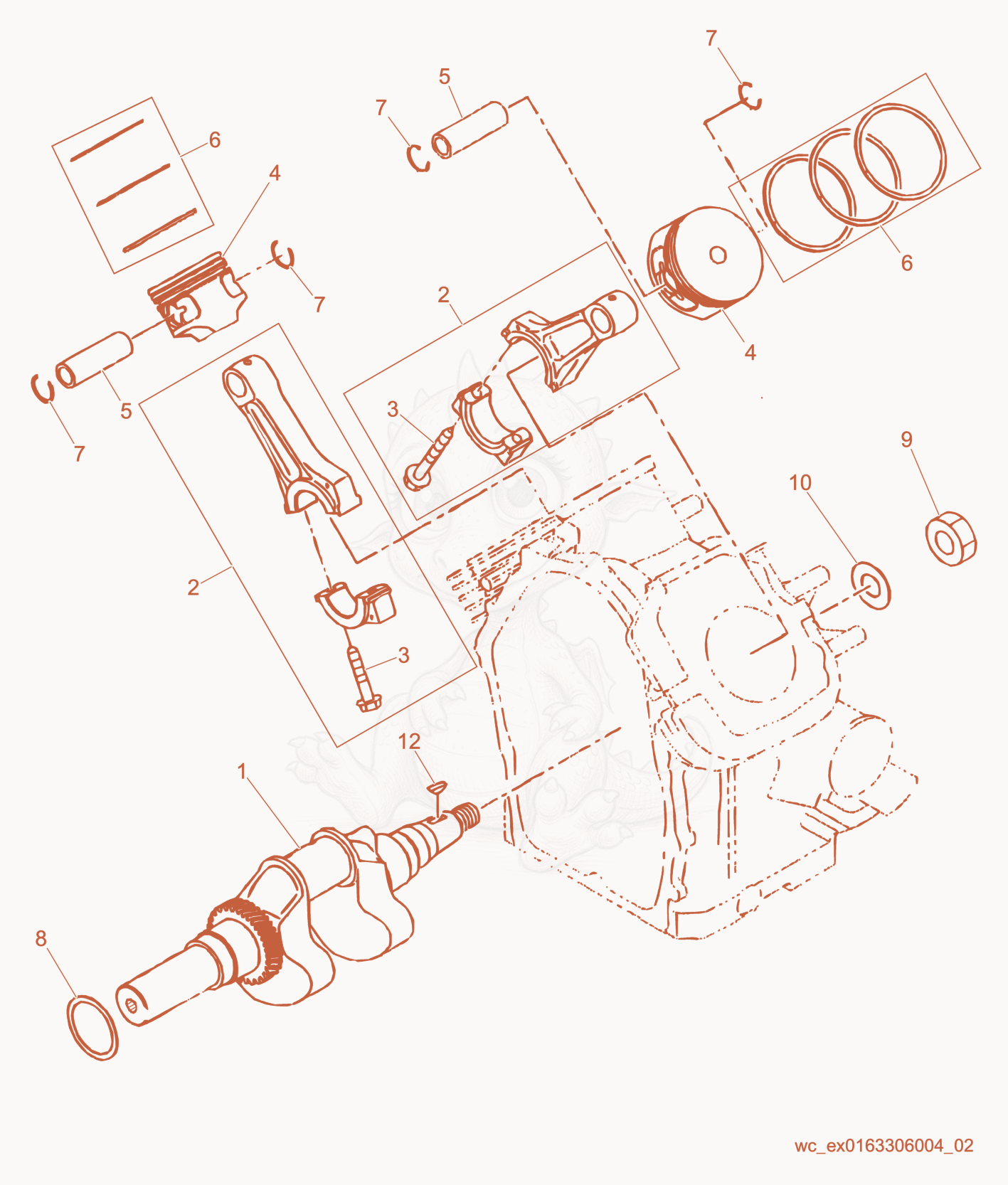

RD12-90 Crankshaft Diagram

Exploded parts diagram of the Crankshaft of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000215169Not stocked
    Crankshaft×1
  • 25000215170Not stocked
    Connecting rod cpl.×2
  • 35000215126Not stocked
    Bolt×2
  • 45000215171Price
    Piston - 5000215171×2
  • 55000210291Not stocked
    Piston pin×2
  • 65000215172Price
    Piston Ring Set - 5000215172×2
  • 75000205603Price
    CLIP - 5000205603×4
  • 85000215176Not stocked
    Spacer×1
  • 85000215177Not stocked
    Spacer×1
  • 85000215178Not stocked
    Spacer×1
  • 95000215268Not stocked
    Nut×1
  • 105000205591Price
    WASHER - 5000205591×1
  • 125000205592Not stocked
    Fitting key×1
