RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

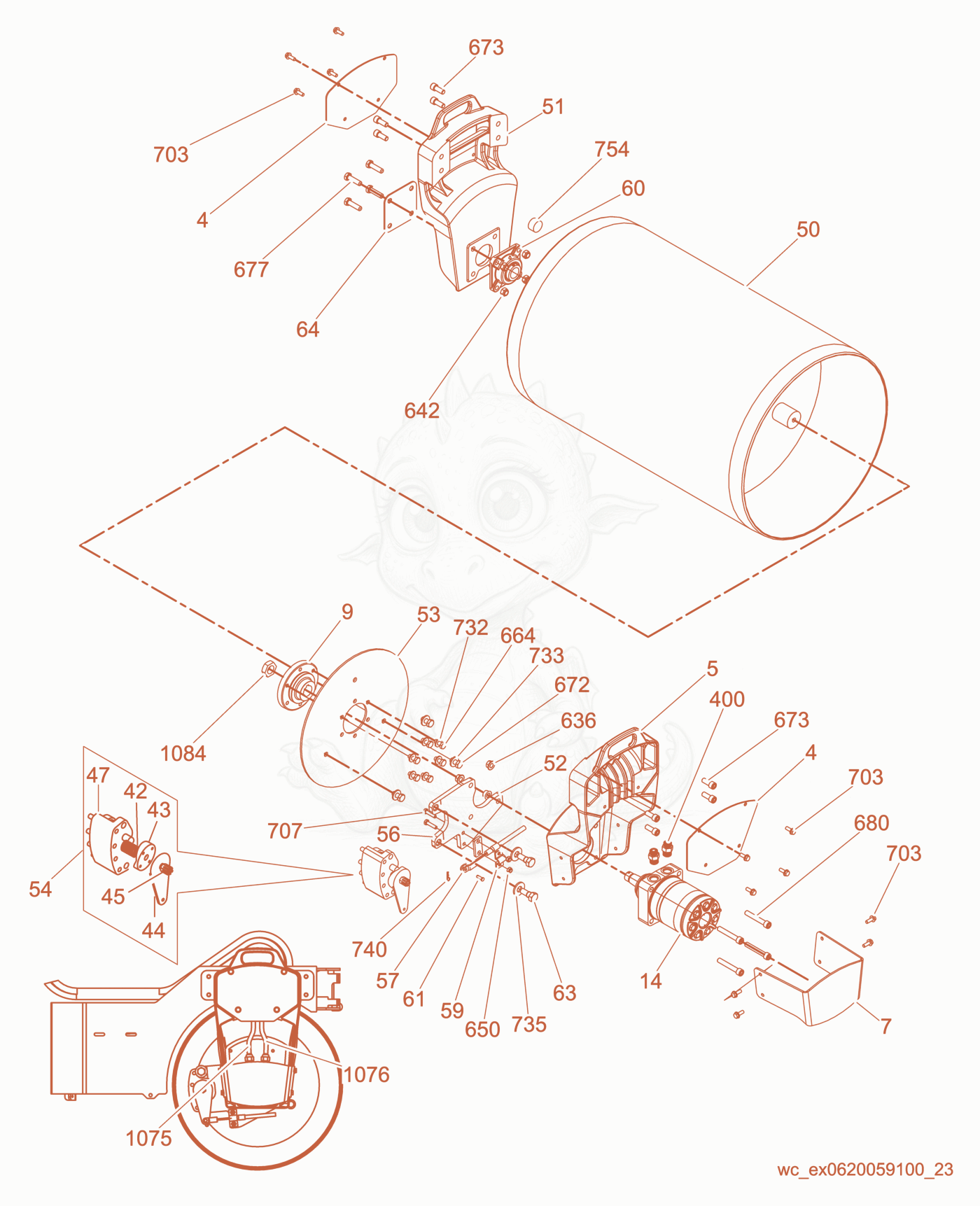

RD12-90 Rear Drum Diagram
- COVER-DRUM SUPPORT P-5000176420 - 5000111119×2
- 55000111058Not stockedBracket×1
- GUARD-MOTOR P-5000176420 - 5000114215×1
- HUB-MACHINED - 5000114856×1
- MOTOR-HYDRAULIC - 5000114214×1
- SPRING-BRAKE LEVER - 5000153351×1
- CAM-BRAKE LEVER - 5000153352×1
- LEVER-BRAKE,RD11 - 5000151119×1
- NUT-HEX,SLOTTED,7/16-20 - 5000153353×1
- PAD-BRAKE,SET,RD11 - 5000151118×1
- DRUM-STATIC - 5000111133×1
- 515000111264Not stockedBracket×1
- MOUNT-PLATE,BRAKE P-5000176420 - 5000119262×1
- PLATE-DRIVE P-5000176420 - 5000111135×1
- BRAKE-RD11,DOM. - 5000119264×1
- SPACER-CABLE P-5000176420 - 5000114093×1
- CABLE-BRAKE - 5000163257×1
- CLAMP-BRAKE CABLE - 5000111047×1
- FLANGE-BEARING - 5000111048×1
- PIN-CLEVIS 1/4 X 3/4 - 5000116785×1
- PIN-BRAKE MOUNT - 5000151112×2
- COVER-BEARING P-5000176420 - 5000112692×1
- FITTING-STR.THD.CONNECTOR - 5000079875×2
- O-RING .755 X.097 DURO90 3-910 - 5000080733×1
- O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
- NUT-M12,HX.HD,FLG ZN,8.8 - 5000164045×4
- NUT-LOCK M12X1.75 HEX - 5000010366×4
- NUT-LOCK M8 HEX - 5000010367×1
- SCREW M10 X 25 HX.HD. - 5000011440×6
- SCREW M12 X 25 HX.HD. - 5000013002×3
- SCREW M12 X 30 SOC.HD - 5000011529×8
- SCREW M12 X 45 HX.HD. - 5000011300×4
- SCREW M12 X 75,SOC.HD. - 5000114098×4
- SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×12
- SCREW M8 X 35 HX.HD. - 5000011340×2
- WASHER-LOCK 10 - 5000033988×6
- WASHER-LOCK A12 - 5000031565×3
- WASHER-LOCK M16 CON SPR,MZP - 5000153532×2
- PIN .0585X1-1/8 ,COTTER,ZINC - 5000114506×1
- FITTING-PLUG 1 NPT,HEX.HEAD - 5000078305×1
- TUBE-STEEL AFT MOTOR A - 5000164817×1
- TUBE-STEEL AFT MOTOR B - 5000164816×1
- NUT 1 -20 UNEF 2A - 5000083689×1
