RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

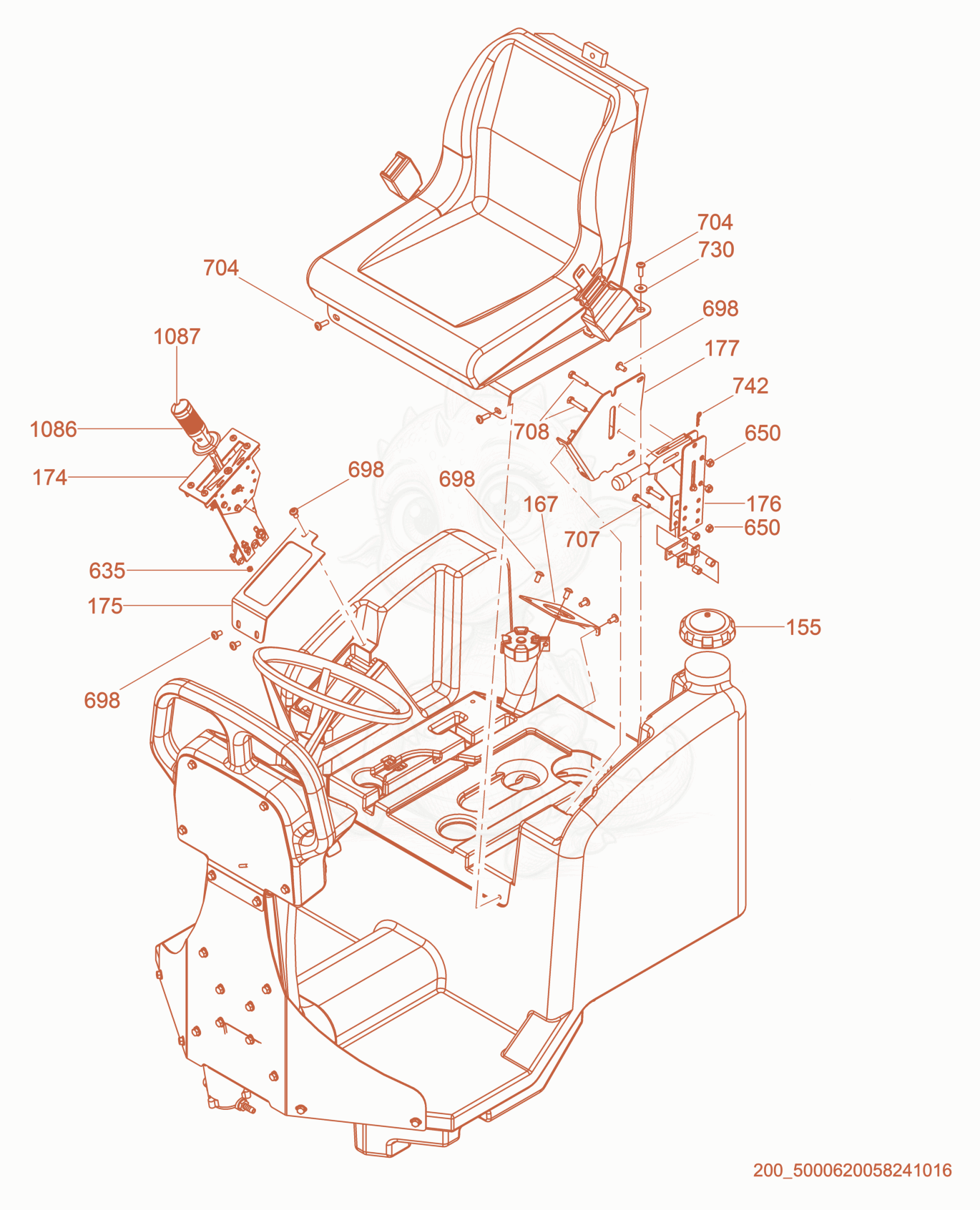

RD12-90 Water Tank/Seat Diagram

Exploded parts diagram of the Water Tank/Seat of a Wacker Neuson RD12-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1555000164776Price
    CAP-WATER TANK - 5000164776×1
  • 1675000163272Price
    GUARD-FUEL SPILL P-5000112007 - 5000163272×1
  • 1745100017780Price
    LEVER-TRAVEL CONTROL - 5100017780×1
  • 1755000163275Price
    BRACKET-MOUNT,CONTROL LEVER P-5000112007 - 5000163275×1
  • 1765000111116Price
    CONTROL-BRAKE - 5000111116×1
  • 1775000163276Price
    BRACKET-MOUNT,BRAKE P-5000112007 - 5000163276×1
  • 6355000030340Price
    NUT #10-32,HEX.- HMSN Z - 5000030340×1
  • 6505000010367Price
    NUT-LOCK M8 HEX - 5000010367×4
  • 6985000163945Price
    SCREW M8X16 BTN HD BL ZN 10.9 - 5000163945×11
  • 7045000163946Price
    SCREW M8X25 BTN HD BL ZN 10.9 - 5000163946×4
  • 7075000011340Price
    SCREW M8 X 35 HX.HD. - 5000011340×2
  • 7085000011341Price
    SCREW M8 X 40 HX.HD. - 5000011341×2
  • 7305000163953Price
    WASHER-M8 FLAT,ZINC BLK PL - 5000163953×2
  • 7425000075161Price
    PIN 1-3/16 LONG .073DIA,COTTER - 5000075161×1
  • 10865200023172Price
    KIT-GRIP HOUSING - 5200023172×1
  • 10875000114261Price
    CAP-RUBBER - 5000114261×1
