RD11A-ROLLER,DOUBLE DRUM

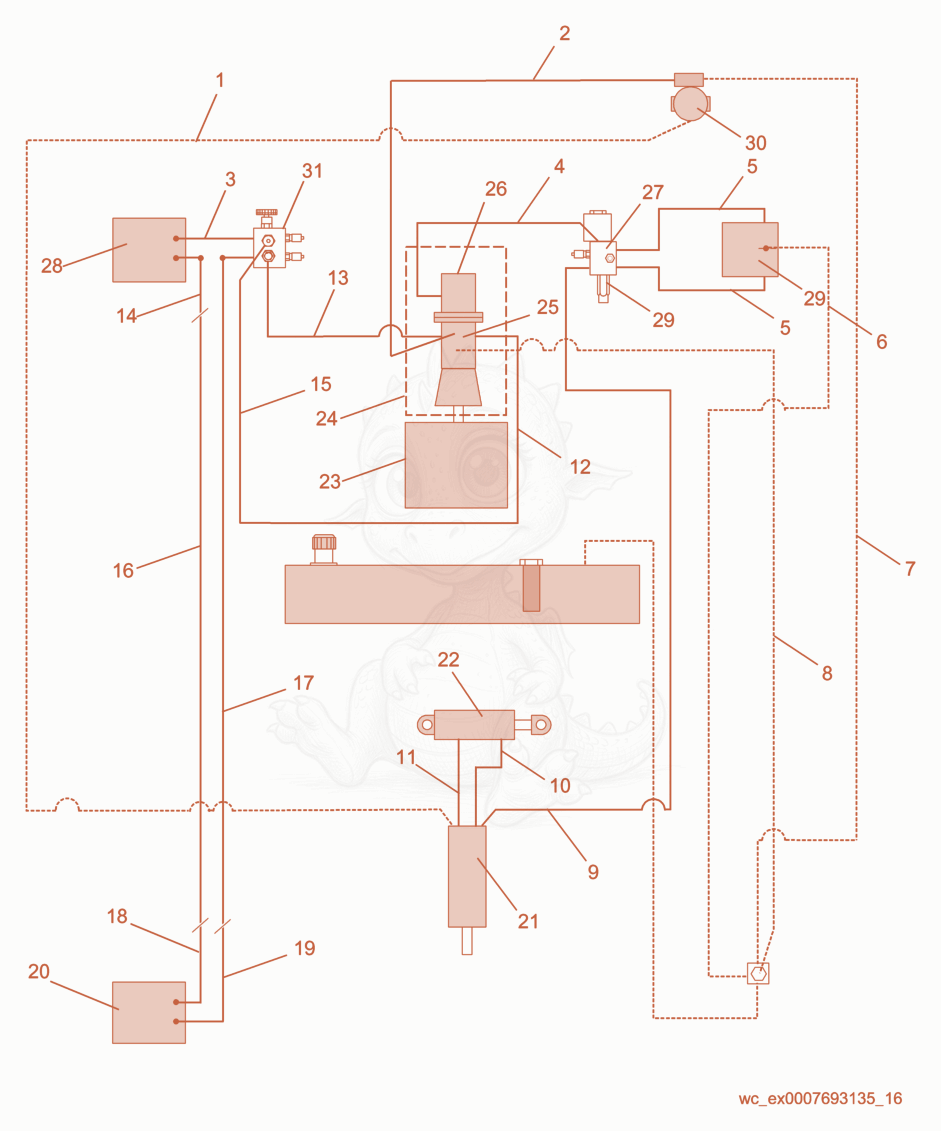

RD11A Hydraulic Schematic Diagram

Exploded parts diagram of the Hydraulic Schematic of a Wacker Neuson RD11A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000111299Not stocked
    Hose cpl.×1
  • 25000111301Not stocked
    Hose cpl.×1
  • 35000114219Not stocked
    Tube×1
  • 45000111294Not stocked
    Hose cpl.×1
  • 55000111306Price
    HOSE-ASSEMBLY - 5000111306×2
  • 65000111305Not stocked
    Hose cpl.×1
  • 75000157023Not stocked
    Hose cpl.×1
  • 85000111302Not stocked
    Hose cpl.×1
  • 95000111300Not stocked
    Hose cpl.×1
  • 105000111297Not stocked
    Hose cpl.×1
  • 115000111298Not stocked
    Hose cpl.×1
  • 125000111293Price
    HOSE-SUCTION 3/4X18 L - 5000111293×1
  • 135000111296Not stocked
    Hose cpl.×1
  • 145000114220Not stocked
    Tube×1
  • 155000111295Not stocked
    Hose cpl.×1
  • 165000114218Not stocked
    Hose cpl.×1
  • 175000114217Not stocked
    Hose cpl.×1
  • 185000114221Price
    TUBE-ASSEMBLY,REAR 1 - 5000114221×1
  • 195000114222Price
    TUBE-ASSEMBLY,REAR 2 - 5000114222×1
  • 205000114214Price
    MOTOR-HYDRAULIC - 5000114214×1
  • 215000111291Price
    VALVE-STEERING W/COLUMN & R.V. - 5000111291×1
  • 225000111130Price
    CYLINDER-HYDRAULIC - 5000111130×1
  • 235000118080Not stocked
    Honda engine×1
  • 245000111062Not stocked
    Hydraulic pump×1
  • 255000114281Price
    PUMP-PISTON - 5000114281×1
  • 265000114279Not stocked
    Pump×1
  • 275000110688Not stocked
    Manifold×1
  • 285000114214Price
    MOTOR-HYDRAULIC - 5000114214×1
  • 295000112281Price
    VALVE-DIFF.AREA RELIEF,2000PSI - 5000112281×1
  • 305000156998Price
    HEAD-FILTER,W/SOFT SEAT - 5000156998×1
  • 315000114216Price
    Manifold - 5000114216×1
