RD11A-ROLLER,DOUBLE DRUM

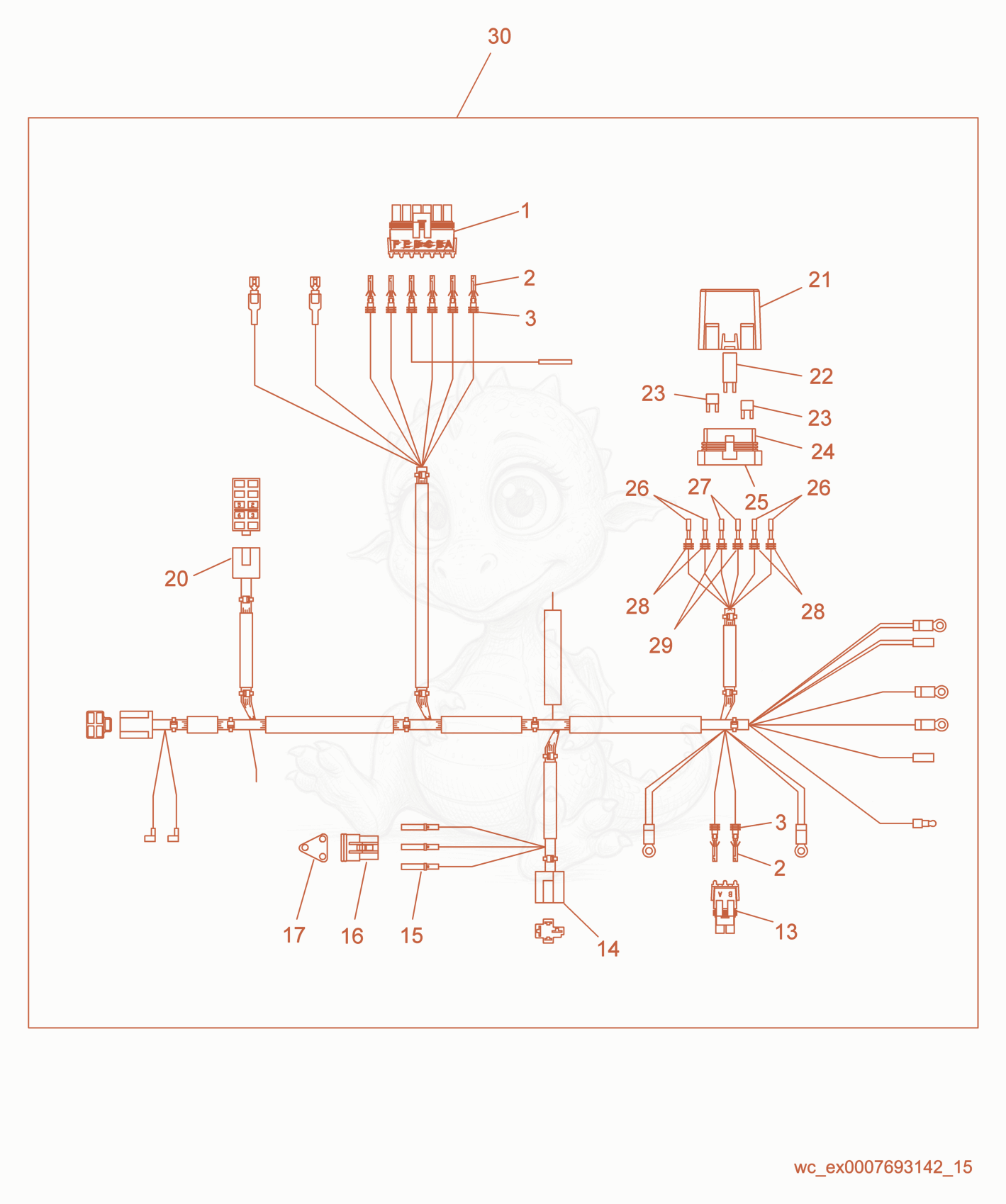

RD11A Main Wiring Harness Diagram
- 15000086551Not stockedConnector×1
- SLEEVE-CONNECTOR - 5000087008×1
- seal- cable - 5000087009×1
- 135000086545Not stockedConnector×1
- 145000086997Not stockedConnector×1
- TERMINAL-RCPT 16-18,SOCKET - 5000111874×1
- PLUG - 5000152395×1
- 175000152397Not stockedCap×1
- 205000152319Not stockedConnector×1
- CAP-CONNECTOR,FUSE - 5000153782×1
- BREAKER-20A,MINI BLADE TYPE - 5000153490×1
- FUSE-20A,MINI BLADE TYPE - 5000153489×2
- BODY-CONNECTOR,FUSE - 5000153783×1
- LOCK-CONNECTOR,SECONDARY - 5000153784×1
- SLEEVE-CONNECTOR - 5000153778×4
- SLEEVE-CONNECTOR - 5000153781×2
- 285000153779Not stockedSeal×4
- 295000153780Not stockedSeal×2
- 305000164966Not stockedMain wiring harness×1
