RD11A-ROLLER,DOUBLE DRUM

RD11A Battery Diagram

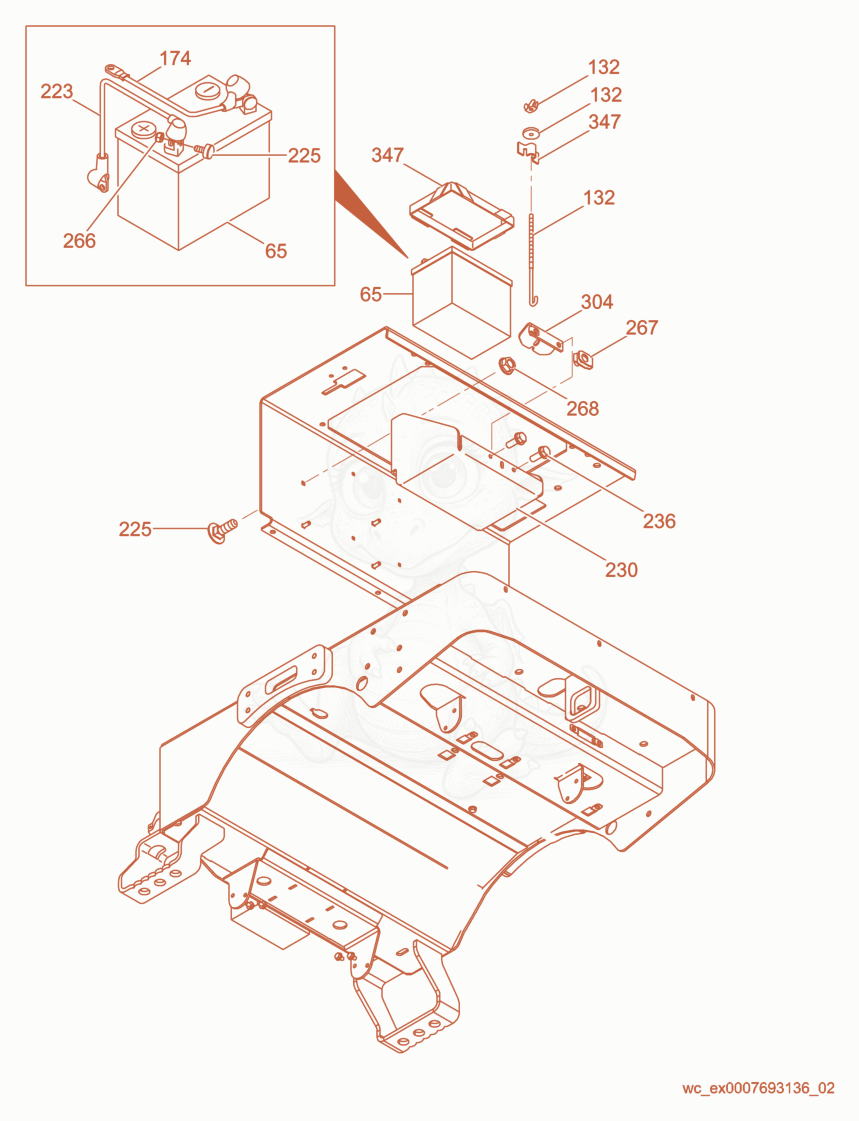

Exploded parts diagram of the Battery of a Wacker Neuson RD11A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 655000118088Price
    BATTERY-340 CCA - 5000118088×1
  • 1325000157185Price
    BOLT-J .25-8,BATTERY - 5000157185×2
  • 1745000157186Not stocked
    Negative battery cable×1
  • 2235000157187Price
    CABLE-BATTERY,POSITIVE - 5000157187×1
  • 2255000111845Price
    BOLT-CARRIAGE M8X25 - 5000111845×6
  • 2305000157182Price
    BRACKET-BATTERY MOUNT - 5000157182×1
  • 2365000087023Price
    SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×2
  • 2665000010367Price
    NUT-LOCK M8 HEX - 5000010367×2
  • 2675000110969Price
    NUT-LOCK,M8 CLIP - 5000110969×2
  • 2685000030066Price
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 3045000157183Not stocked
    Mounting bracket×1
  • 3475000157184Not stocked
    Battery bracket×1
