GPSi4300-GEN,INVERTER,NONCARB

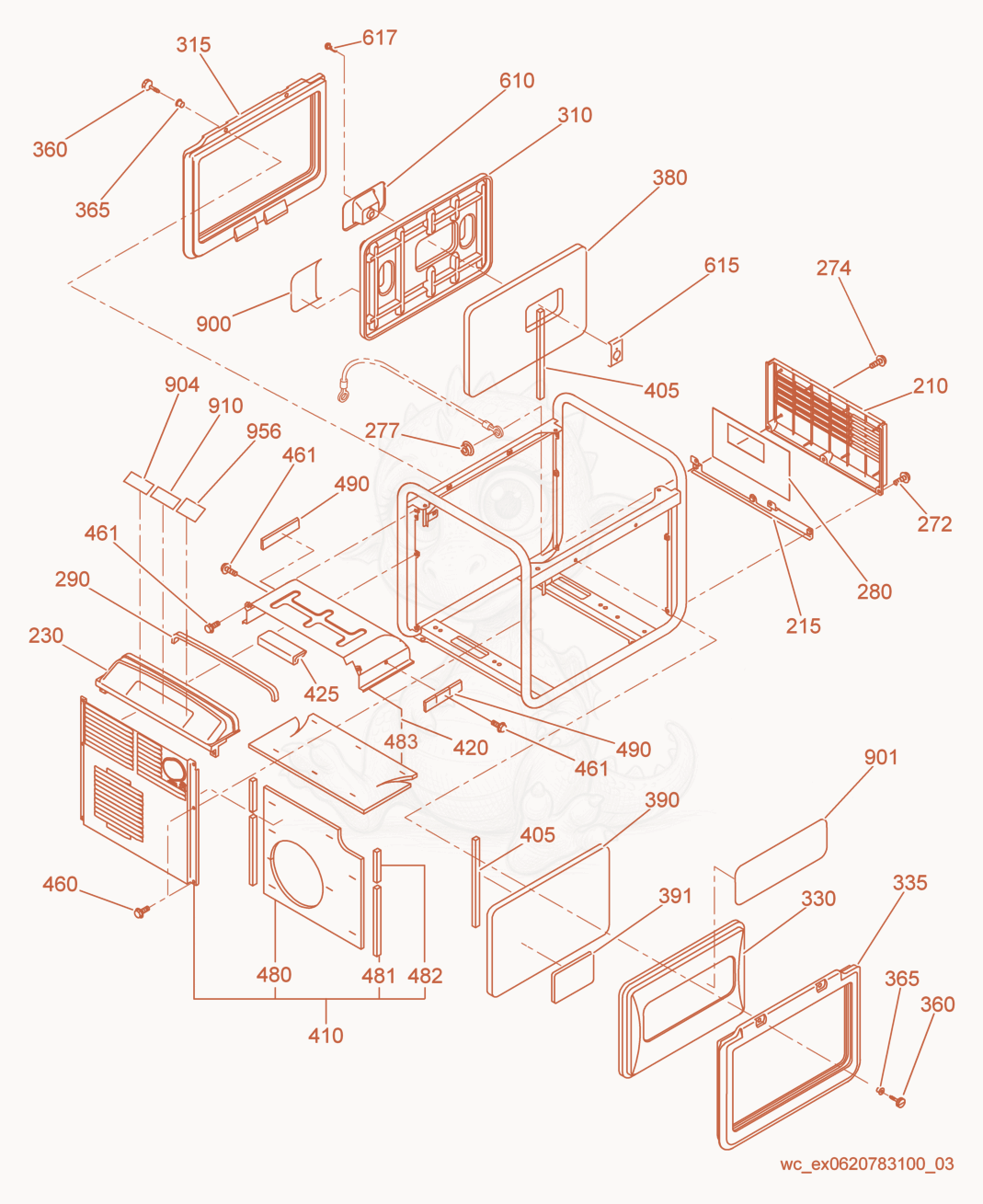

GPSI4300 Panel cpl. Diagram
- COVER-FRONT,LOWER - 5000180436×1
- 2155000180422Not stockedBracket×1
- PANEL-REAR,UPPER - 5000180437×1
- 2725000226011Not stockedFlange bolt×2
- Bolt w/washer - 5000180391×1
- NUT M6,HEX,FLANGE - 5000053616×1
- 2805000181747Not stockedSeal×1
- 2905000180357Not stockedSeal×1
- 3105000181977Not stockedCover, side×1
- 3155000181978Not stockedSeal×1
- 3305000181979Not stockedCover, side×1
- 3355000181978Not stockedSeal×1
- 3605000181768Not stockedBolt×4
- 3655000181769Not stockedSpacer×4
- 3805000181980Not stockedPad×1
- 3905000181981Not stockedPad×1
- 3915000181784Not stockedPad×1
- 4055000181774Not stockedPad×2
- COVER-MUFFLER - 5000180443×1
- 4205000181982Not stockedMuffler guard×1
- 4255000180448Not stockedSeal×1
- 4605000226011Not stockedFlange bolt×6
- BOLT-FLANGE,M6 X 12 - 5000180396×4
- 4805000180451Not stockedInsulation, blanket×1
- 4815000181776Not stockedPad×2
- 4825000181777Not stockedPad×2
- 4835000180450Not stockedInsulation×1
- 4905000181983Not stockedSeal×2
- Cover cpl. - 5000181763×1
- 6155000181764Not stockedPlate cpl.×1
- Screw w/washer - 5000226007×2
- 9005000181984Not stockedLabel×1
- 9015000181985Not stockedLabel×1
- 9045000181986Not stockedLabel×1
- LABEL-CAUTION - 5000181736×1
- LABEL-HOT SURFACE - 5000180408×1
