GPSi4300-GEN,INVERTER,NONCARB

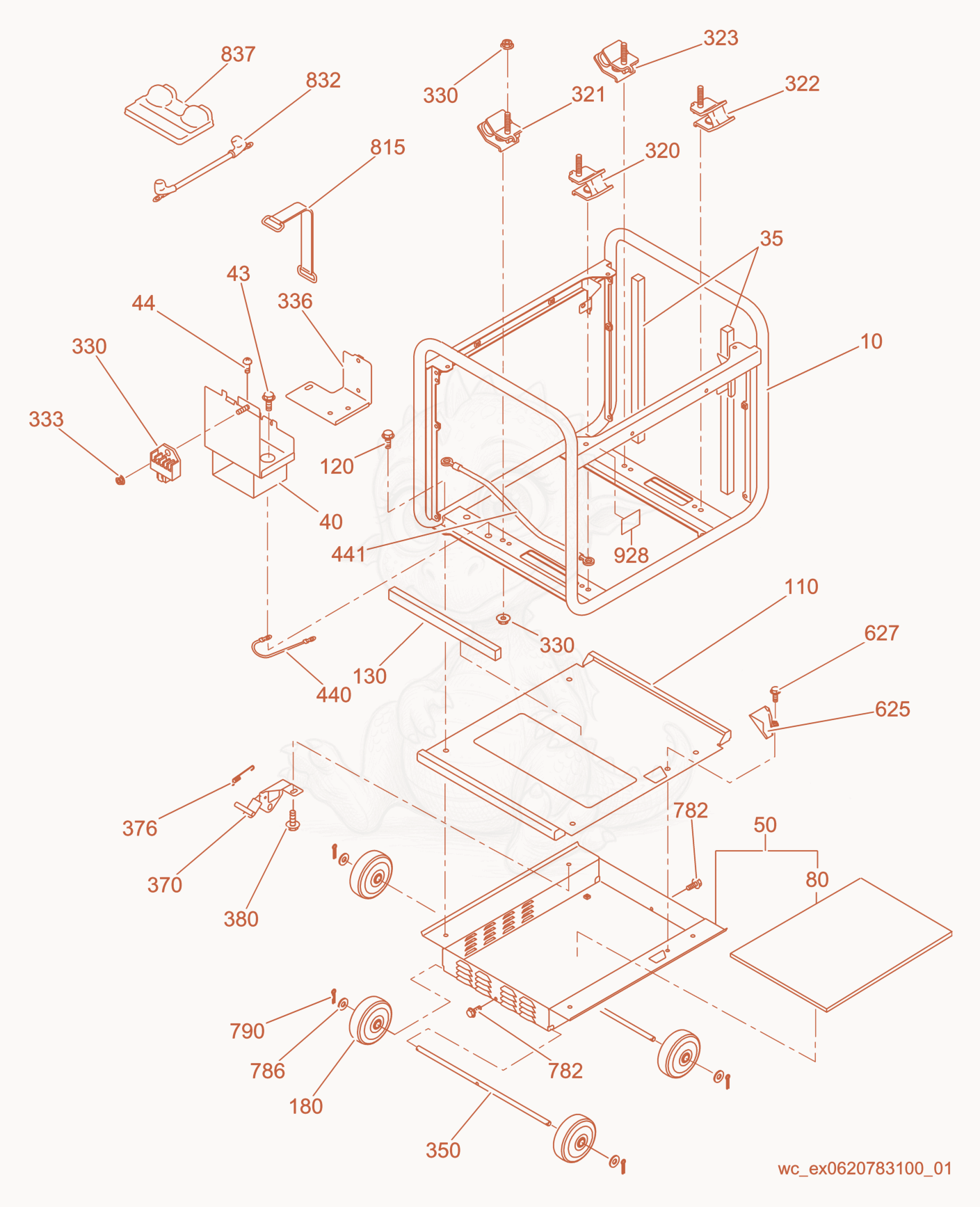

GPSI4300 Frame cpl. Diagram
- 105000181969Not stockedFrame cpl.×1
- 355000181970Not stockedPad×2
- 405000180424Not stockedBattery tray×1
- BOLT-FLANGE,M6 X 12 - 5000180396×2
- 445000180349Not stockedScrew×1
- 505000181971Not stockedBaseplate×1
- 805000181782Not stockedPad×1
- 1105000181972Not stockedBaseplate×1
- BOLT W/WASHER - 5000159212×4
- 1305000181783Not stockedPad×1
- Wheel - 5000181973×4
- Mount cpl. - 5000180419×1
- Mount cpl. - 5000180343×1
- Mount cpl. - 5000180344×1
- MOUINT CPL. - 5000180414×1
- NUT-FLANGE - 5000075270×8
- NUT M6,HEX,FLANGE - 5000053616×1
- 3365000180426Not stockedBracket×1
- AXLE-SHAFT - 5000181766×2
- BRACKET CPL. - 5000181770×1
- Spring - 5000181771×1
- BOLT W/WASHER - 5000159212×1
- 4405000180435Not stockedGround wire cpl.×1
- 4415000180348Not stockedGround wire cpl.×1
- 6255000181767Not stockedDrain rail×1
- BOLT-FLANGE,M6 X 12 - 5000180396×1
- BOLT-FLANGE,M6 X 12 - 5000180396×2
- Washer - 5000180393×3
- PIN-COTTER - 5000180395×4
- Strap - 5000180452×1
- 8325000180434Not stockedBattery cable×1
- COVER-BATTERY - 5000180453×1
