GPSi4300-GEN,INVERTER,NONCARB

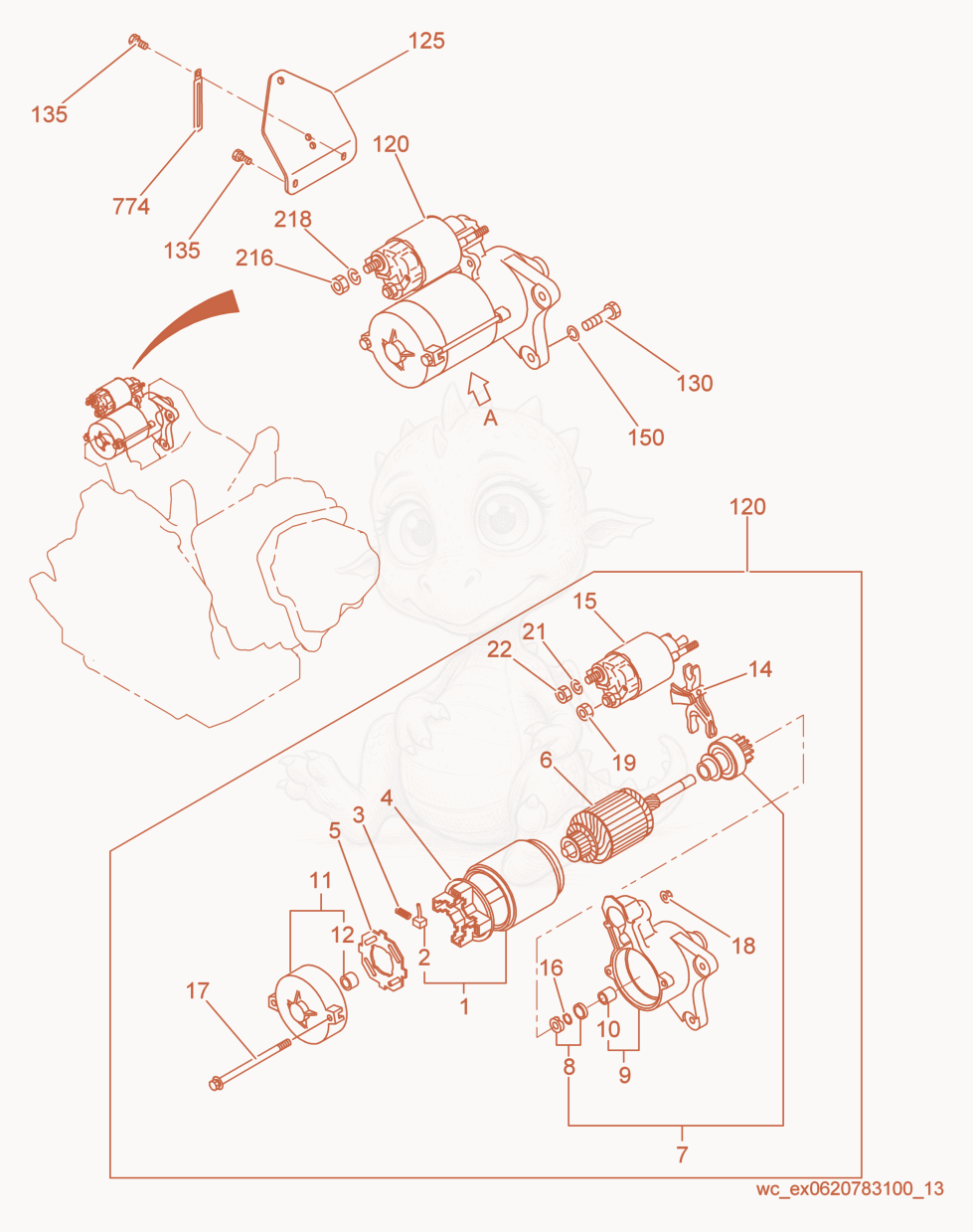

GPSI4300 Starter Motor Diagram

Exploded parts diagram of the Starter Motor of a Wacker Neuson GPSI4300, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000226039Not stocked
    Yoke×1
  • 25000226040Not stocked
    Brush×4
  • 35000226038Not stocked
    Spring×4
  • 45000226037Not stocked
    Collar×1
  • 55000226041Not stocked
    Insulator×1
  • 65000226042Not stocked
    Armature×1
  • 75000226035Not stocked
    Clutch×1
  • 85000226057Not stocked
    Pinion stopper set×1
  • 95000226141Not stocked
    Housing×1
  • 105000226034Not stocked
    Bushing×1
  • 115000226032Not stocked
    Cover×1
  • 125000226033Not stocked
    Bushing×1
  • 145000226036Not stocked
    Connector×1
  • 155000226140Not stocked
    Magnet switch×1
  • 165000226043Not stocked
    Snap ring×1
  • 175000226044Not stocked
    Bolt×2
  • 185000226237Not stocked
    Nut×2
  • 195000226045Not stocked
    Nut×1
  • 215000226031Not stocked
    Spring washer×1
  • 225000226046Not stocked
    Nut×1
  • 1205000226139Price
    Electric starter - 5000226139×1
  • 1255000226143Not stocked
    Bracket×1
  • 1305000226047Not stocked
    Bolt×2
  • 1355000156597Price
    BOLT-FLANGE - 5000156597×3
  • 1505000215841Not stocked
    Washer×2
  • 2165000226004Not stocked
    Nut×1
  • 2185000071332Not stocked
    Lockwasher×1
  • 7745000205689Not stocked
    Clamp×1
