G110-GENERATOR,SKID BASE

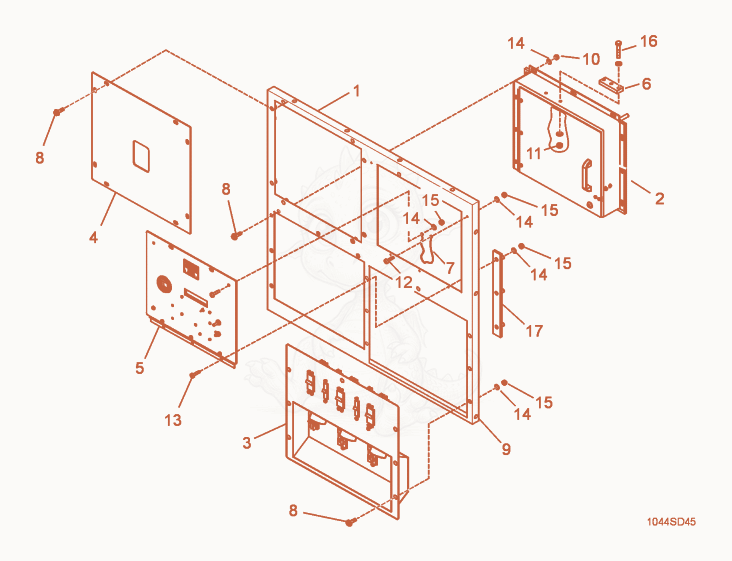

G110 Control Panel cpl. Diagram

Exploded parts diagram of the Control Panel cpl. of a Wacker Neuson G110, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000157032Not stocked
    Control panel×1
  • 25000151968Not stocked
    Panel×1
  • 35000115213Not stocked
    Panel×1
  • 45000153630Price
    PLATE-LUG BREAKER COVER,G125 - 5000153630×1
  • 55000151970Not stocked
    Control panel×1
  • 65000157095Not stocked
    Bracket×1
  • 75000153488Price
    STRAP-SUPPORT,CONTROL PANEL - 5000153488×2
  • 85000155213Price
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×23
  • 95000085454Price
    INSERT M8,THREADED - 5000085454×20
  • 105000030066Price
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×9
  • 115000029117Price
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
  • 125000154515Price
    SCREW M5X12-4.8 PAN HD ZP - 5000154515×4
  • 135000154516Price
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×3
  • 145000010625Price
    WASHER B5.3 FLAT - 5000010625×7
  • 155000010369Price
    NUT-LOCK M5 HEX. - 5000010369×7
  • 165000154519Price
    SCREW M6X25 HX SER FLG CLR ZP - 5000154519×2
  • 175000155471Not stocked
    Plate×1
