G110-GENERATOR,SKID BASE

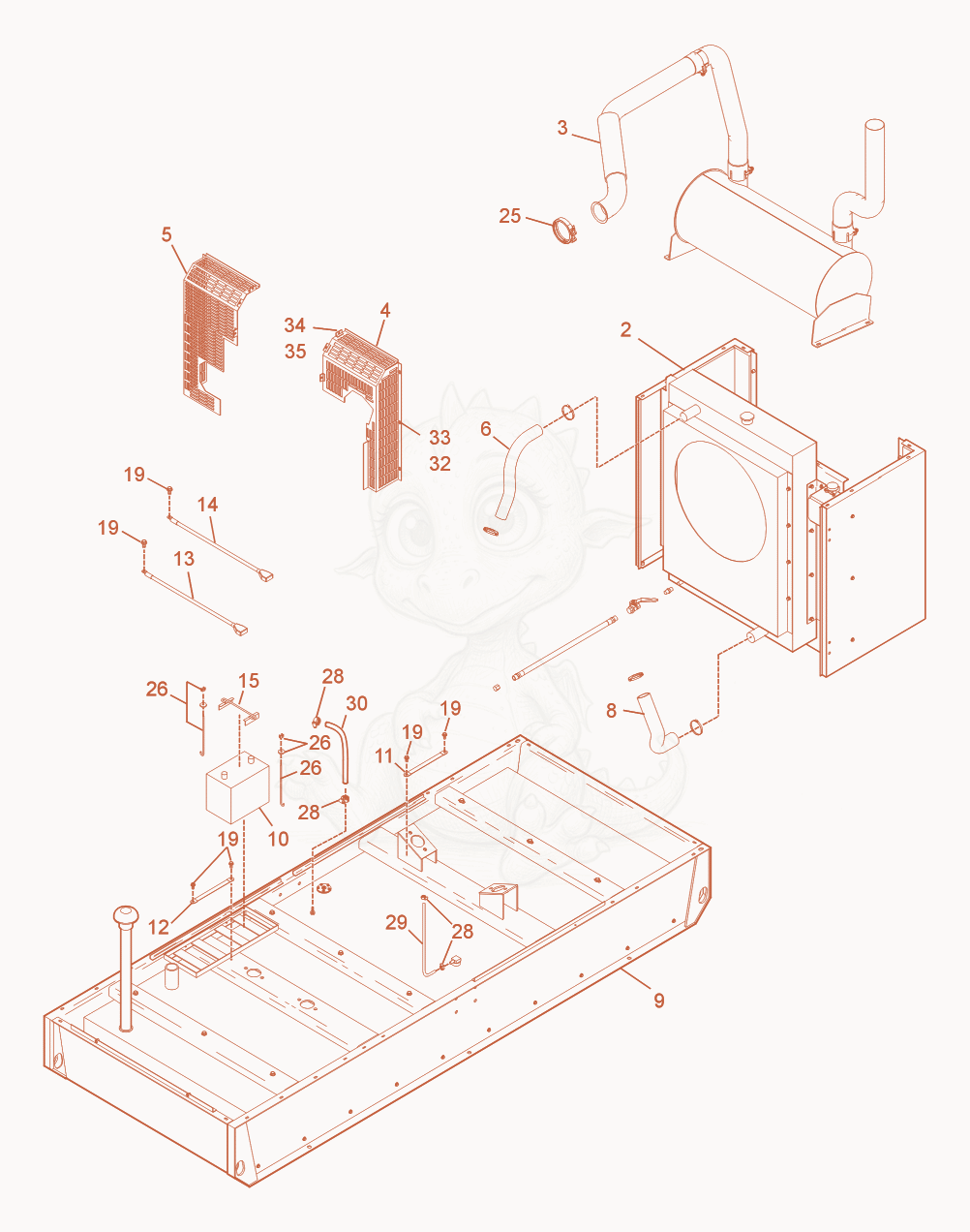

G110 Engine Shrouding Diagram

Exploded parts diagram of the Engine Shrouding of a Wacker Neuson G110, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000152116Not stocked
    Radiator×1
  • 35000152140Not stocked
    Muffler×1
  • 45000153545Not stocked
    Fan guard×1
  • 55000153544Not stocked
    Fan guard×1
  • 65000153598Not stocked
    Radiator top hose×1
  • 85000153597Not stocked
    Radiator bottom hose×1
  • 95000152146Not stocked
    Frame cpl.×1
  • 105000152147Not stocked
    Battery×1
  • 115000152979Price
    STRAP GROUND 15IN - 5000152979×1
  • 125000152978Price
    STRAP-GROUND 10 - 5000152978×1
  • 135000153234Price
    CABLE-BATTERY,POSITIVE - 5000153234×1
  • 145000153235Price
    CABLE-BATTERY,NEGATIVE - 5000153235×1
  • 155000153763Price
    CLAMP-BATTERY HOLD DOWN - 5000153763×1
  • 195000154521Price
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×11
  • 255000154385Price
    CLAMP 4 V-BAND - 5000154385×1
  • 265000154319Price
    BOLT-L .25-10,BATTERY - 5000154319×2
  • 285000028707Price
    CLAMP-THREADED,.21-.63 - 5000028707×4
  • 295000153765Price
    HOSE-FUEL 5/16 X 970MM - 5000153765×1
  • 305000153767Not stocked
    Fuel return hose×1
  • 325000012397Price
    WASHER-LOCK B8 - 5000012397×6
  • 335000155391Not stocked
    Hexagonal head cap screw×6
  • 345000029117Price
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×3
  • 355000029116Price
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×3
