G110-GENERATOR,SKID BASE

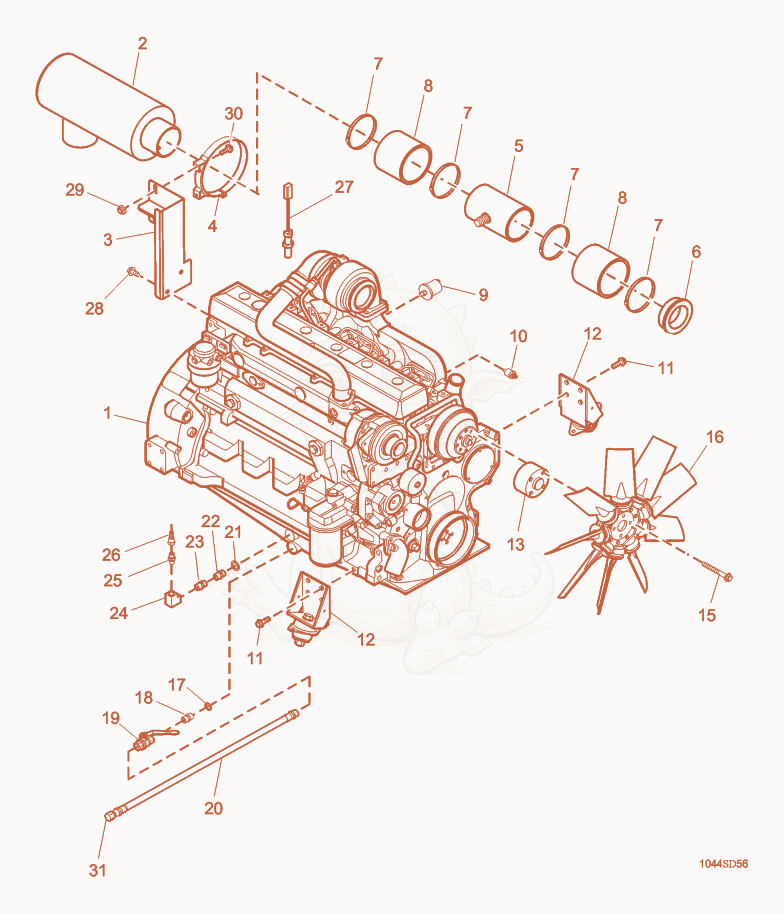

G110 Engine cpl. Diagram
- 15000152043Not stockedEngine×1
- 25000153717Not stockedAir cleaner filter×1
- 35000153586Not stockedAir filter bracket×1
- 45000153718Not stockedAir filter clamp×1
- 55000153772Not stockedTap sleeve fitting×1
- 65000153463Not stockedInsert×1
- CLAMP-WORM DRIVE 4.06 -5 - 5000154346×4
- 85000155297Not stockedAir filter hose×2
- 95000153220Not stockedSensor-oil×1
- KIT-SENSOR,TEMP,MED - 5200001043×1
- SCREW M12X25-10.9 HX SFLG MZP - 5000155248×6
- MOUNT-ENGINE - 5000152052×2
- FAN-SPACER - 5000152053×1
- 155000155258Not stockedHexagonal head cap screw×4
- 165000153229Not stockedFan×1
- SEAL-M18 - 5000152056×1
- FITTING M18 X 1/2 NPT - 5000154304×1
- VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
- 205000155371Not stockedHose Kit×1
- SEAL-M22 - 5000152057×1
- FITTING M22 X 1/2 NPT - 5000153962×1
- FITTING-REDUCER 1/2 X 1/4 - 5000154038×1
- FITTING 1/4 X 90 STREET ELL - 5000154039×1
- FILTER-OIL RECIRCULATION - 5000153308×1
- FILTER-OIL RECIRCULATION - 5000153308×1
- SENSOR-MAG PICK UP - 5000153467×1
- SCREW M10X20-10.9 HX SFLG MZP - 5000154521×2
- WASHER-LOCK B8 - 5000012397×2
- SCREW-M8 X 25 HX SER FLG ZP - 5000155213×2
- 315000115812Not stockedOil tank cap×1
