EZ17e

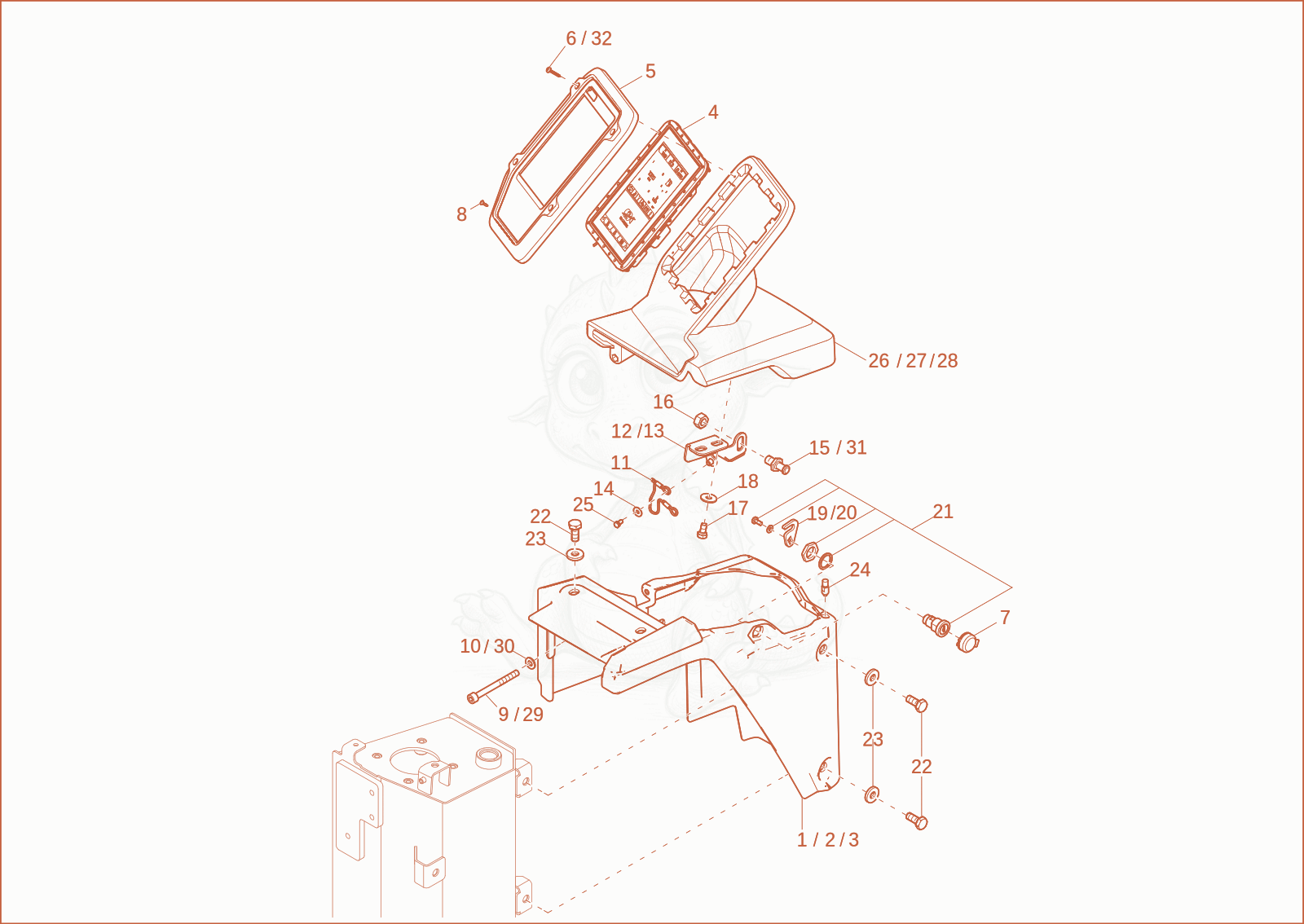

EZ17E TANK COVER Diagram
- trim - 1000412226×1
- 21000427771Not stockedtrim×1
- trim - 1000460849×1
- 41000403551Not stockeddisplay×1
- protection - 1000470194×1
- 61000428018Not stockedscrew×4
- DUST CAP - 1000168922×1
- Screw - 1000447355×4
- 91000015353Not stockedcheese head screw×1
- 101000015448Not stockedwasher×1
- Cable pull - 1000125252×1
- plate - 1000412840×1
- 131000460851Not stockedplate×1
- washer X-1000092302 - 1000095342×1
- 151000073401Not stockedcatch bolt×1
- 6-point screw M12x1-8 A2C - 1000170695×1
- 171000019136Not stockedhex screw×2
- 181000013027Not stockedwasher×2
- 191000427832Not stockedclosing handle×1
- 201000460848Not stockedclosing handle×1
- 211000069463Not stockedcylinder lock×1
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×5
- 231000015434Not stockedwasher×5
- Pin Dipper Stick / Linkage - 1000440144×1
- hex screw - 1000085377×1
- 261000412224Not stockedtrim×1
- 271000427774Not stockedtrim×1
- trim - 1000460850×1
- cheese head screw M6x95 DIN912 - 1000450204×1
- washer M6,4-DIN134 - 1000094966×1
- 311000004271Not stockedcatch bolt×1
